Planar PL-2

$3,299

Maximum Performance. Minimal Space
PL-2 is REL’s solution for spaces where traditional subwoofers do not fit. Designed to work in close relationship with the wall behind it, Planar uses boundary effect coupling to deliver deep, room-filling bass and remarkable scale from an ultra-thin form that occupies little-to-no floor space.

US orders ship the week of June 8th, 2026
UK orders ship the week of June 29th, 2026

500-Watt Pure Class D Amplifier
8” FlatPiston Driver
10” Boundary-Coupled Passive Radiator
Ultra-Thin Cabinet for Near- or On-Wall Placement
Built-In Airship Direct Wireless
Optional Cart for Flexible Placement

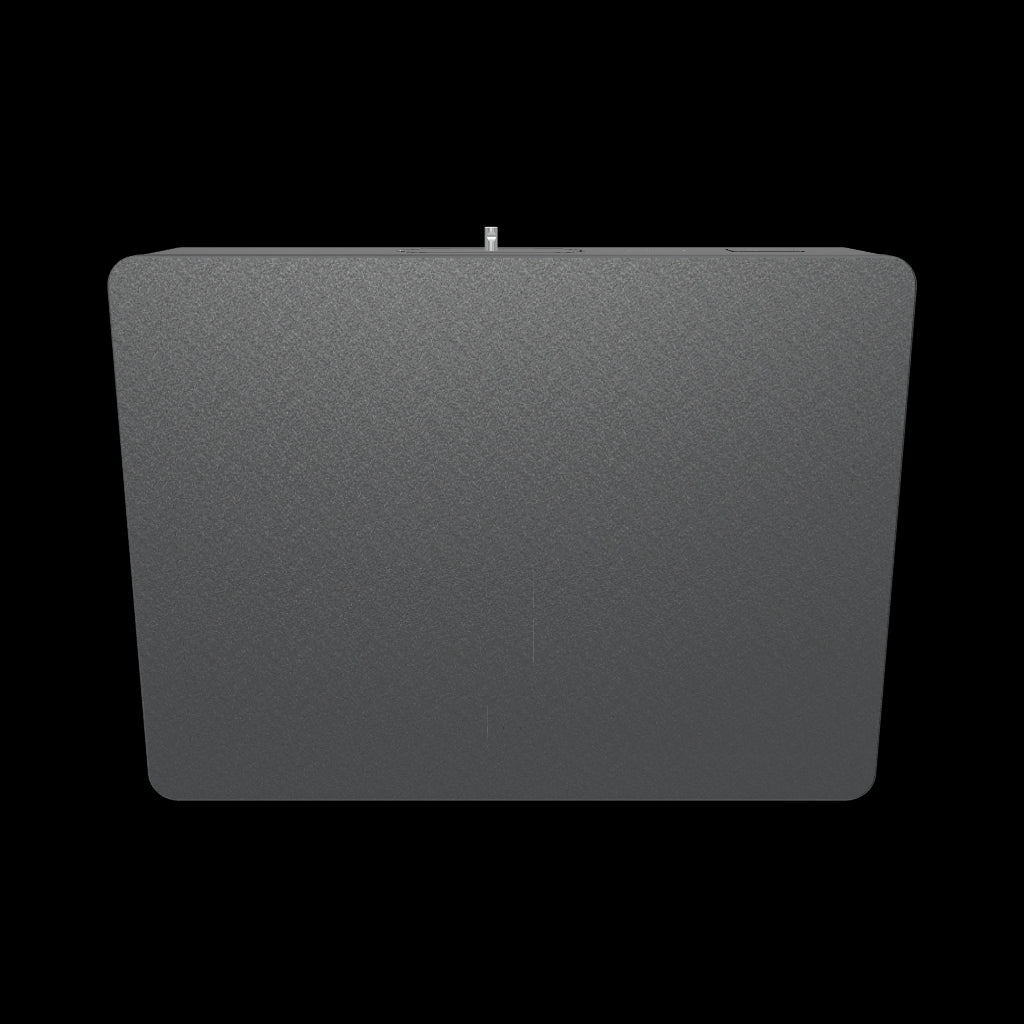

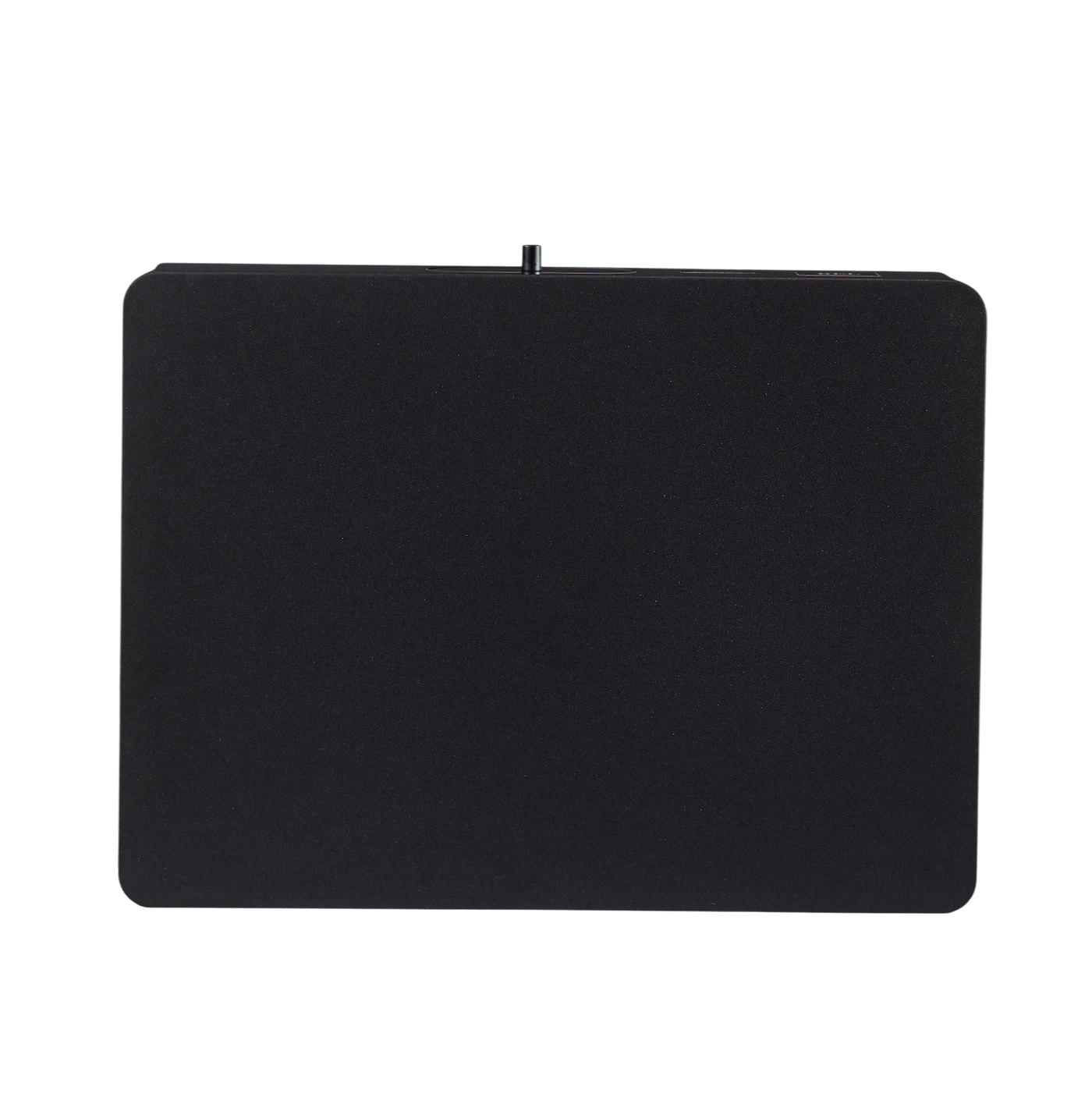

Color:Black/Cloth Grille (included)

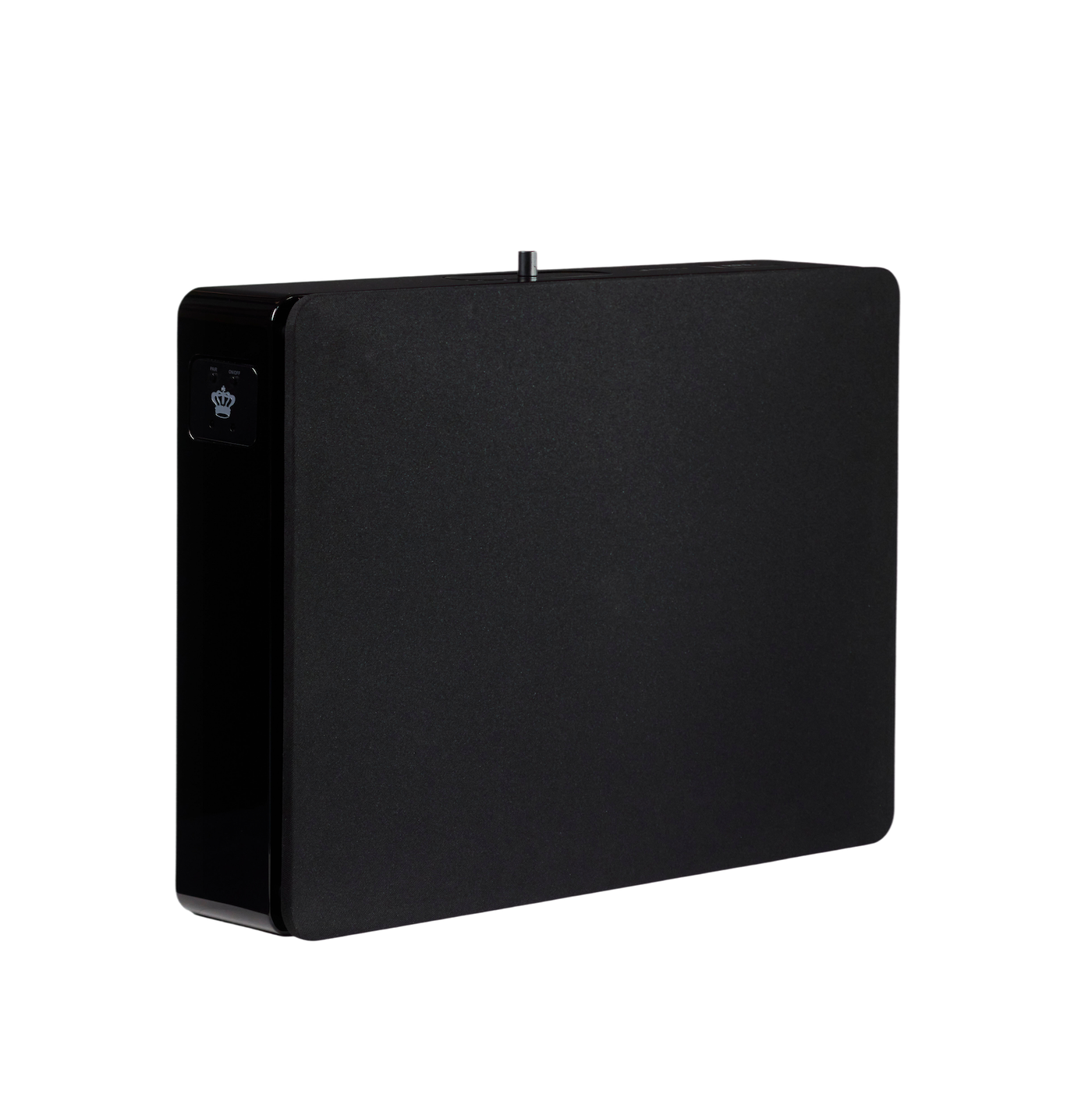

Black/Cloth Grille (included)

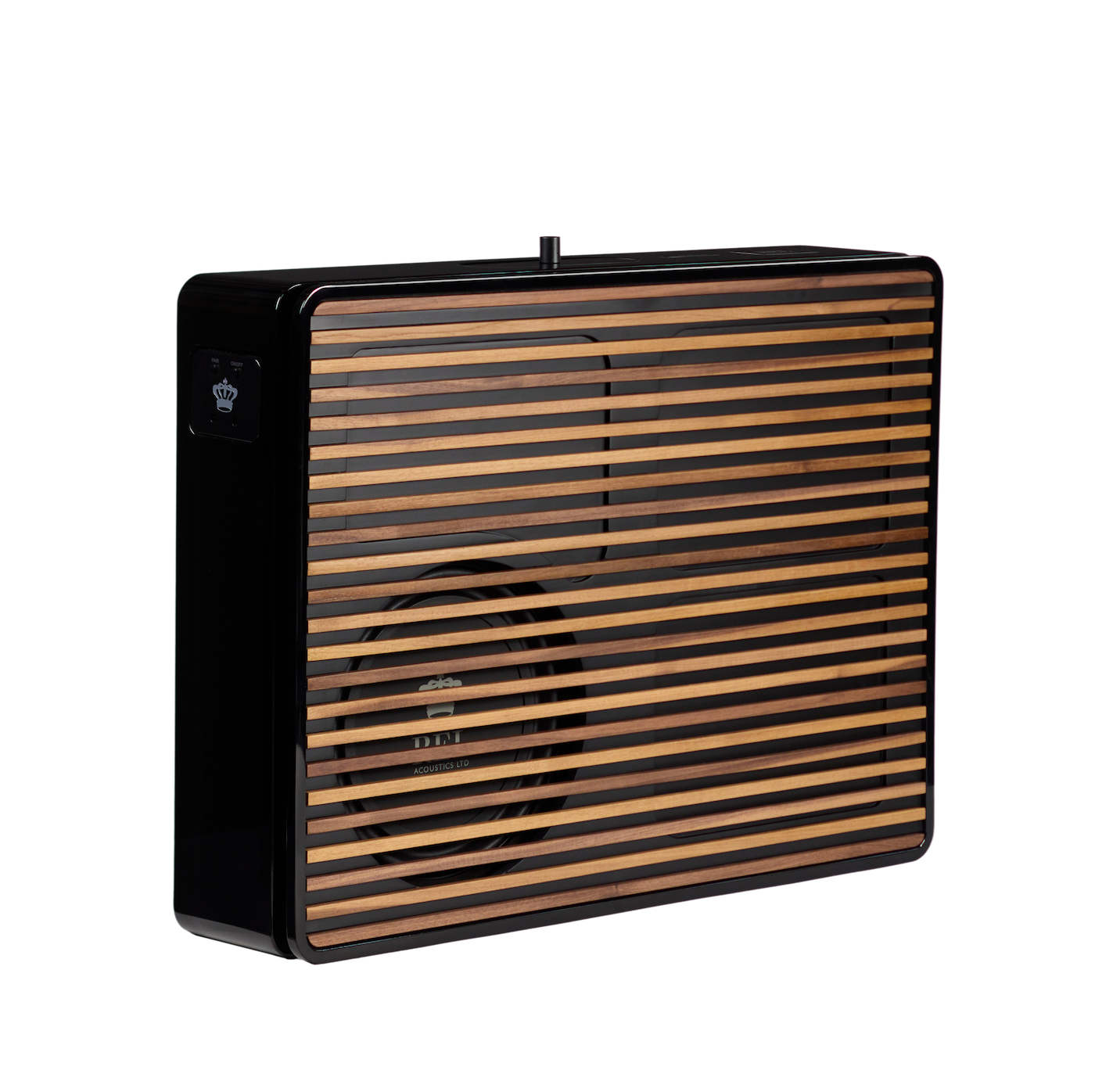

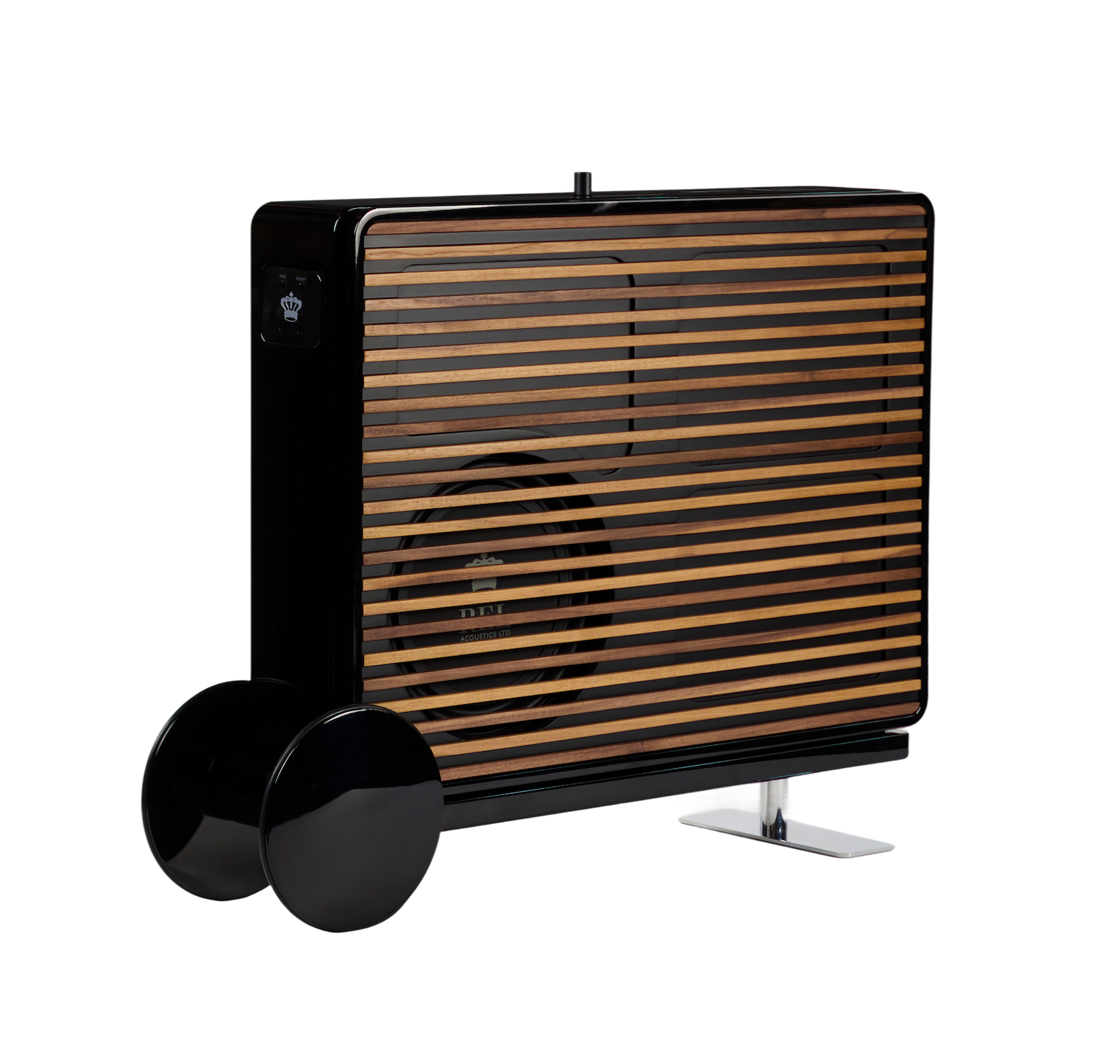

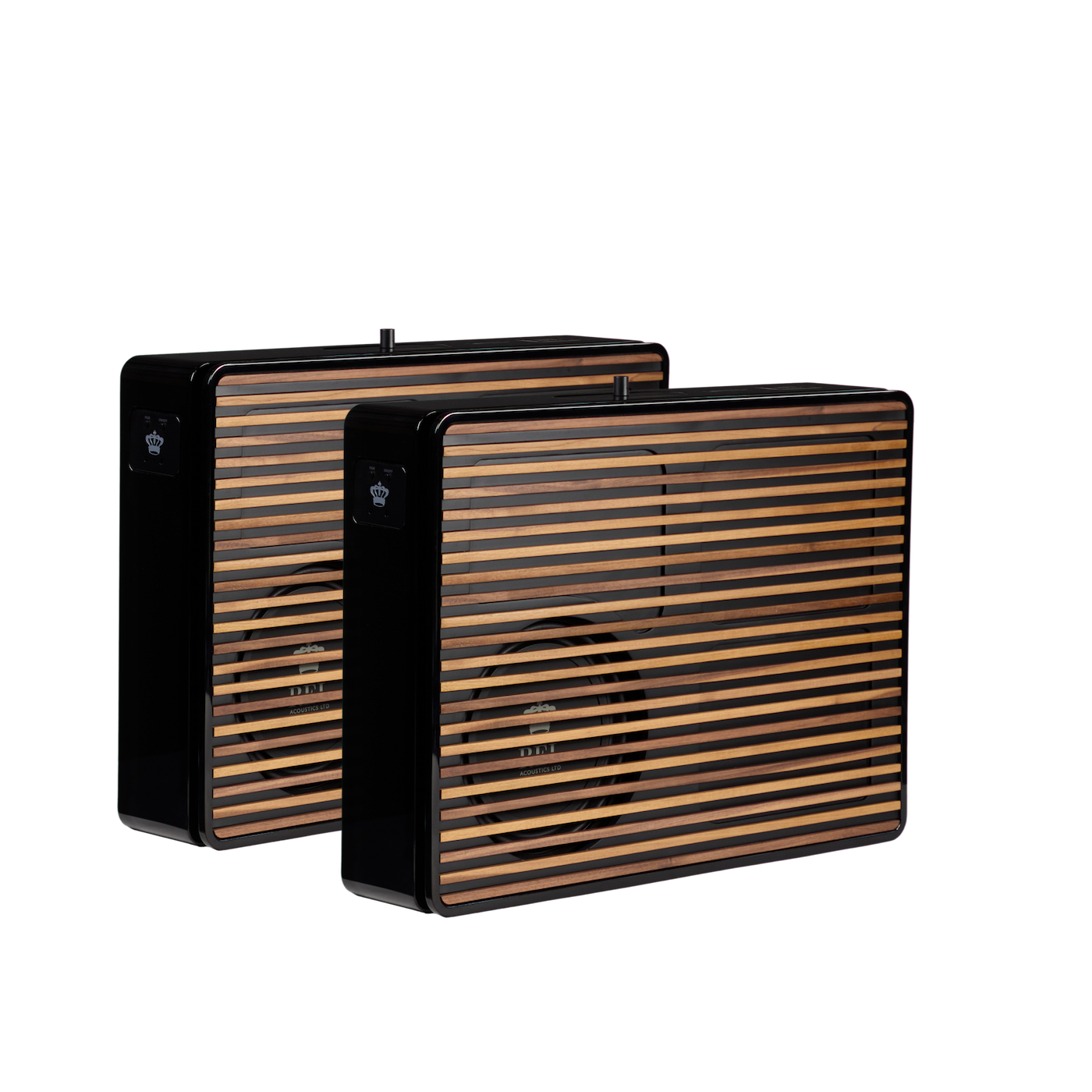

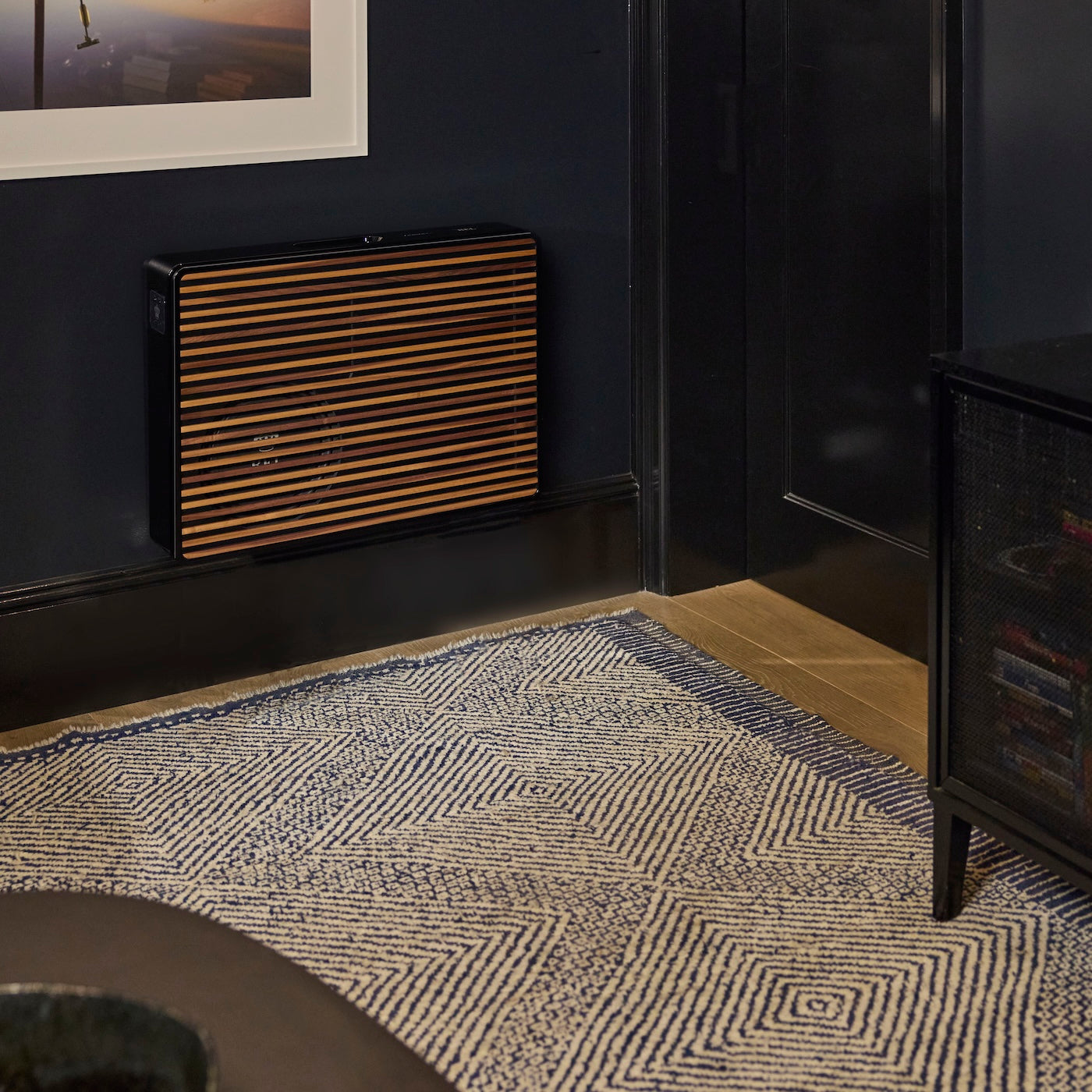

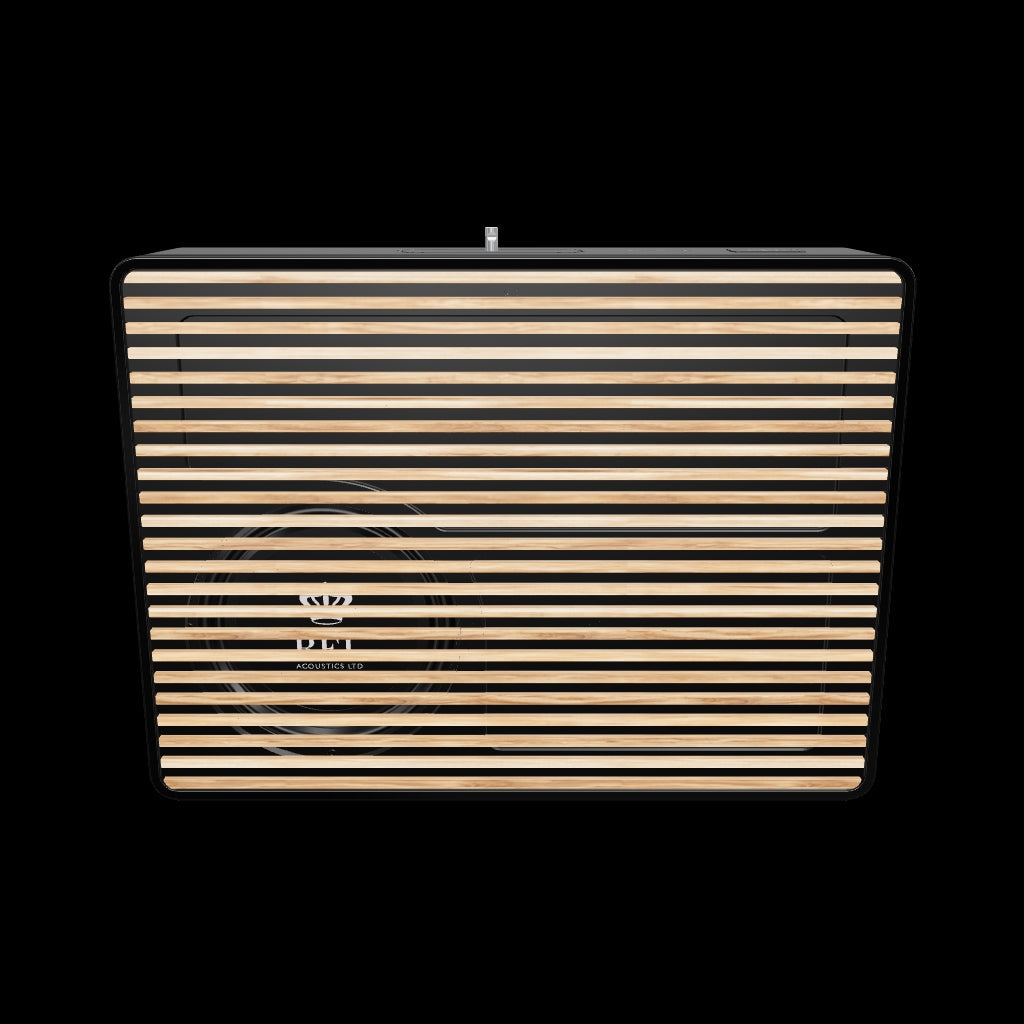

Black/Premium Wood Grille

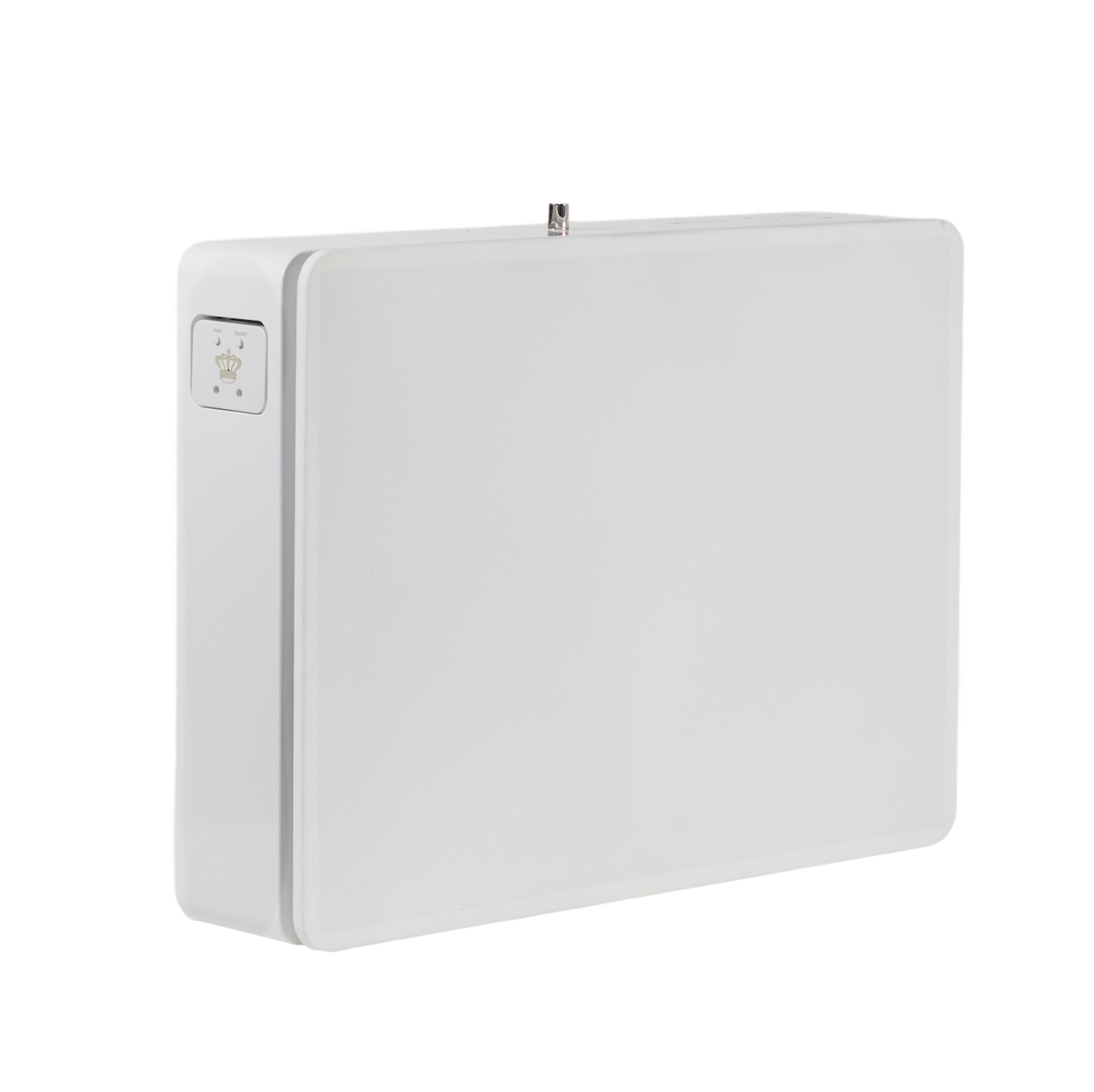

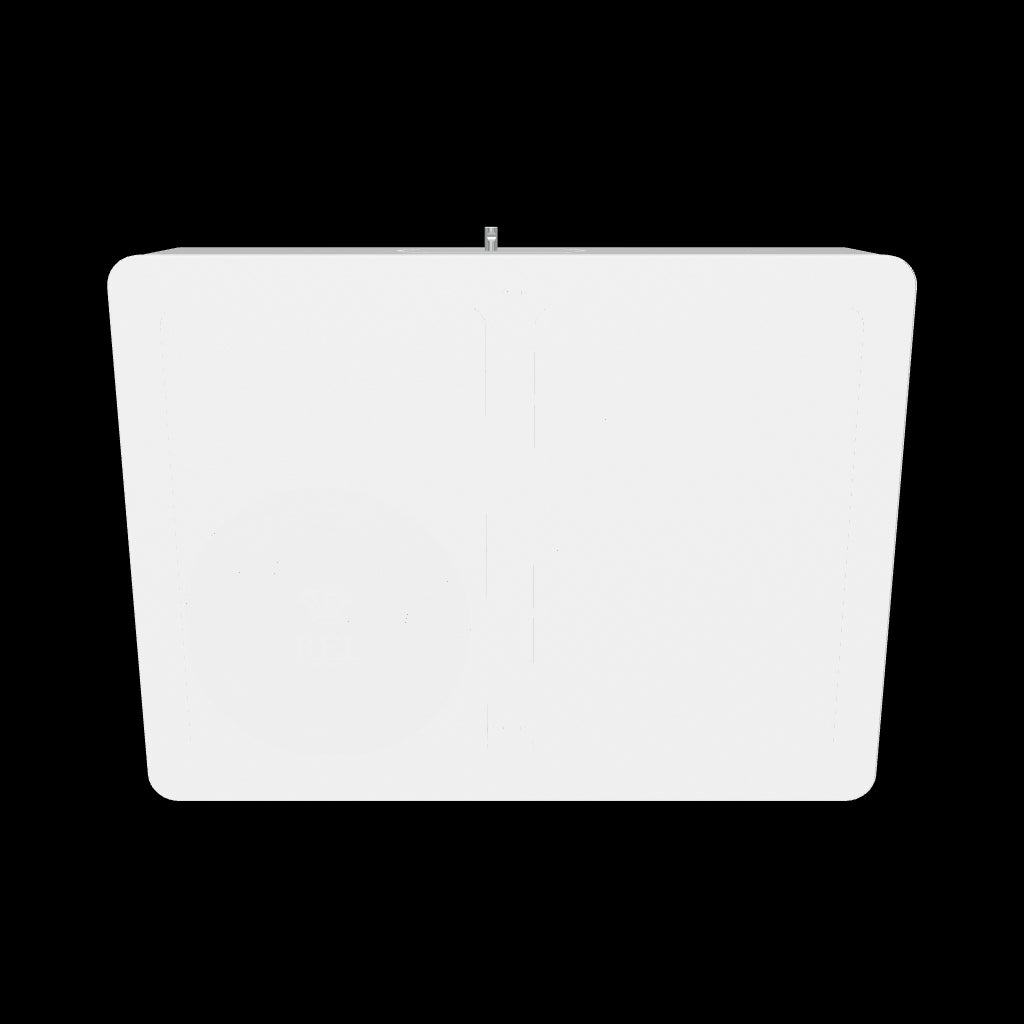

White/Cloth Grille (included)

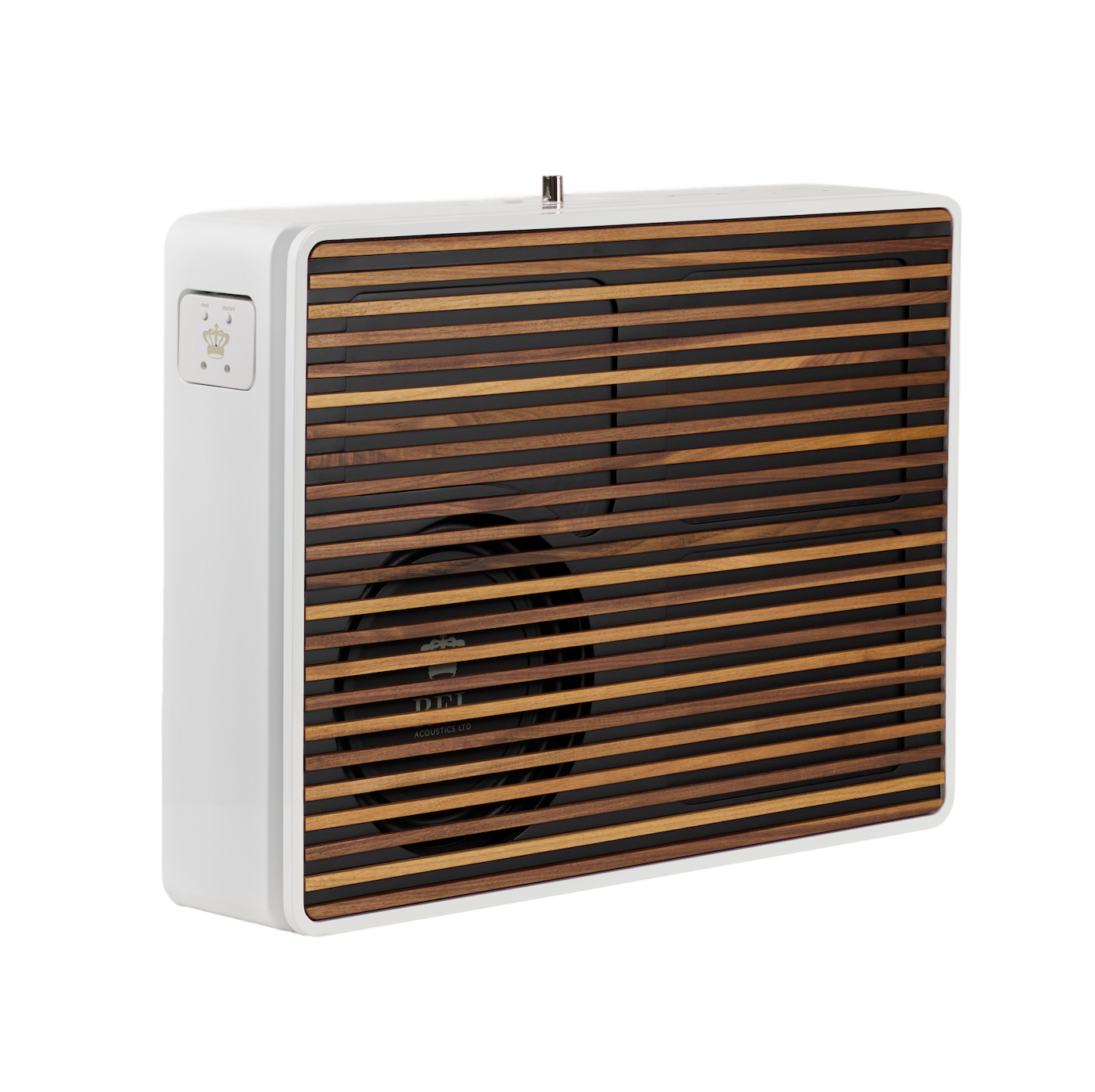

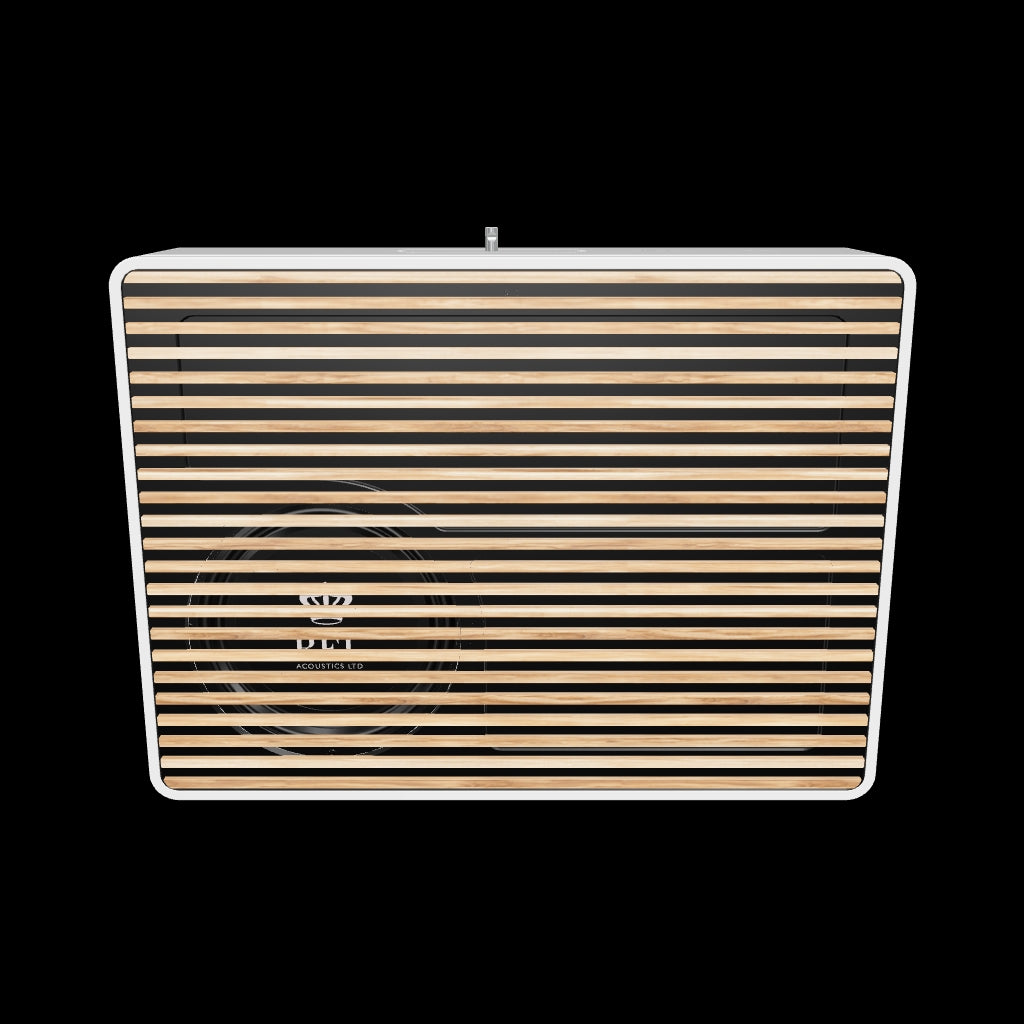

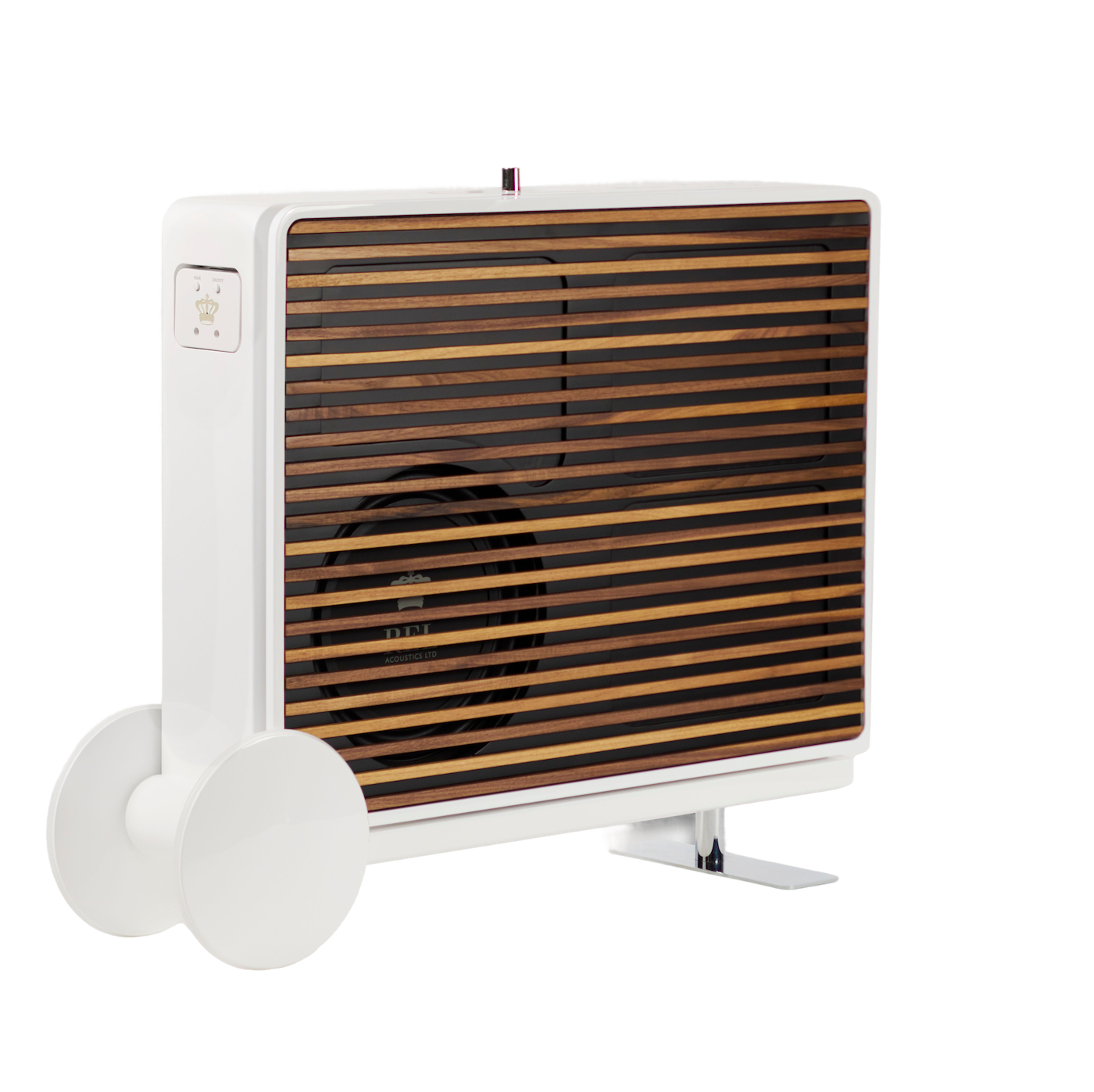

White/Premium Wood Grille

Setup:One Subwoofer

Single Subwoofer

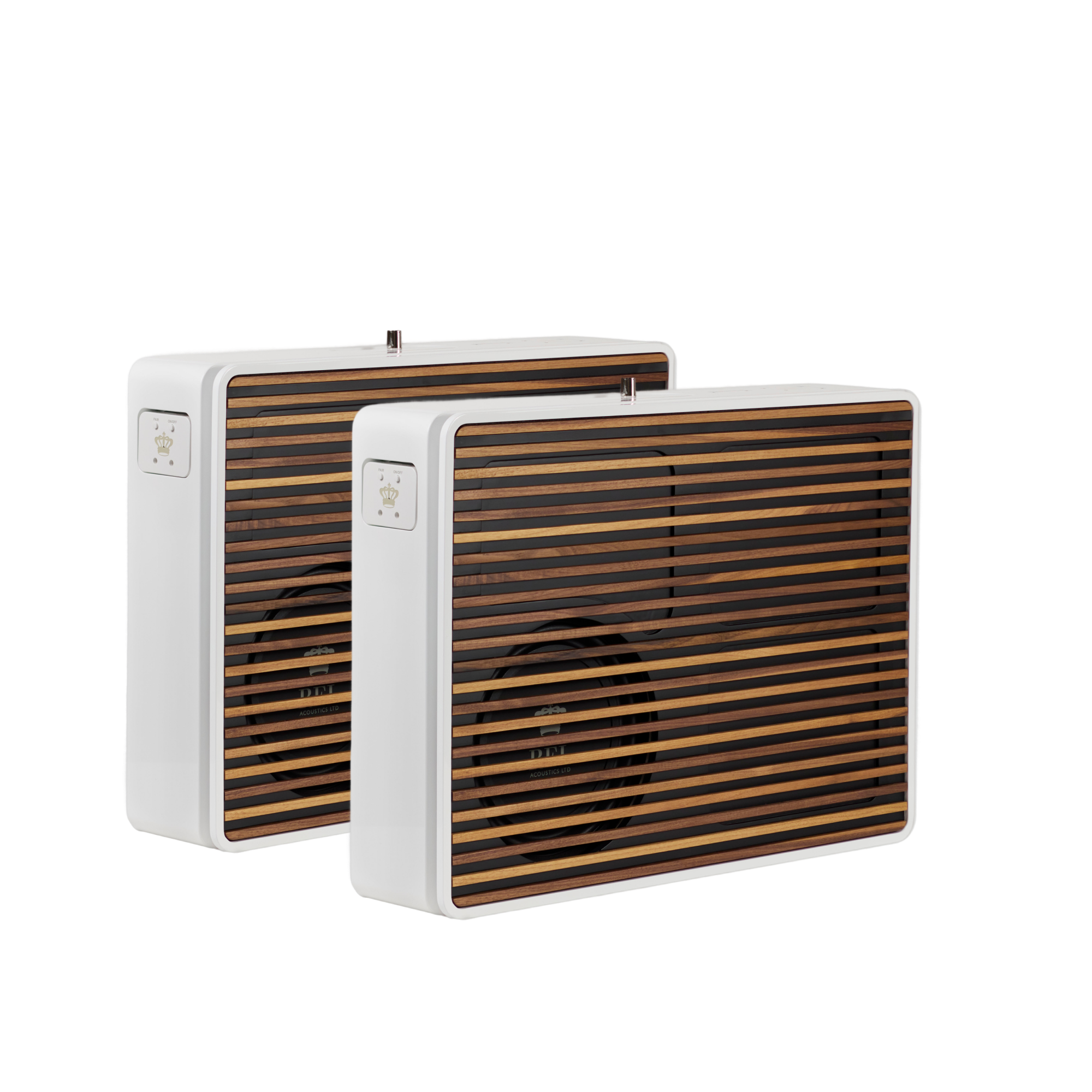

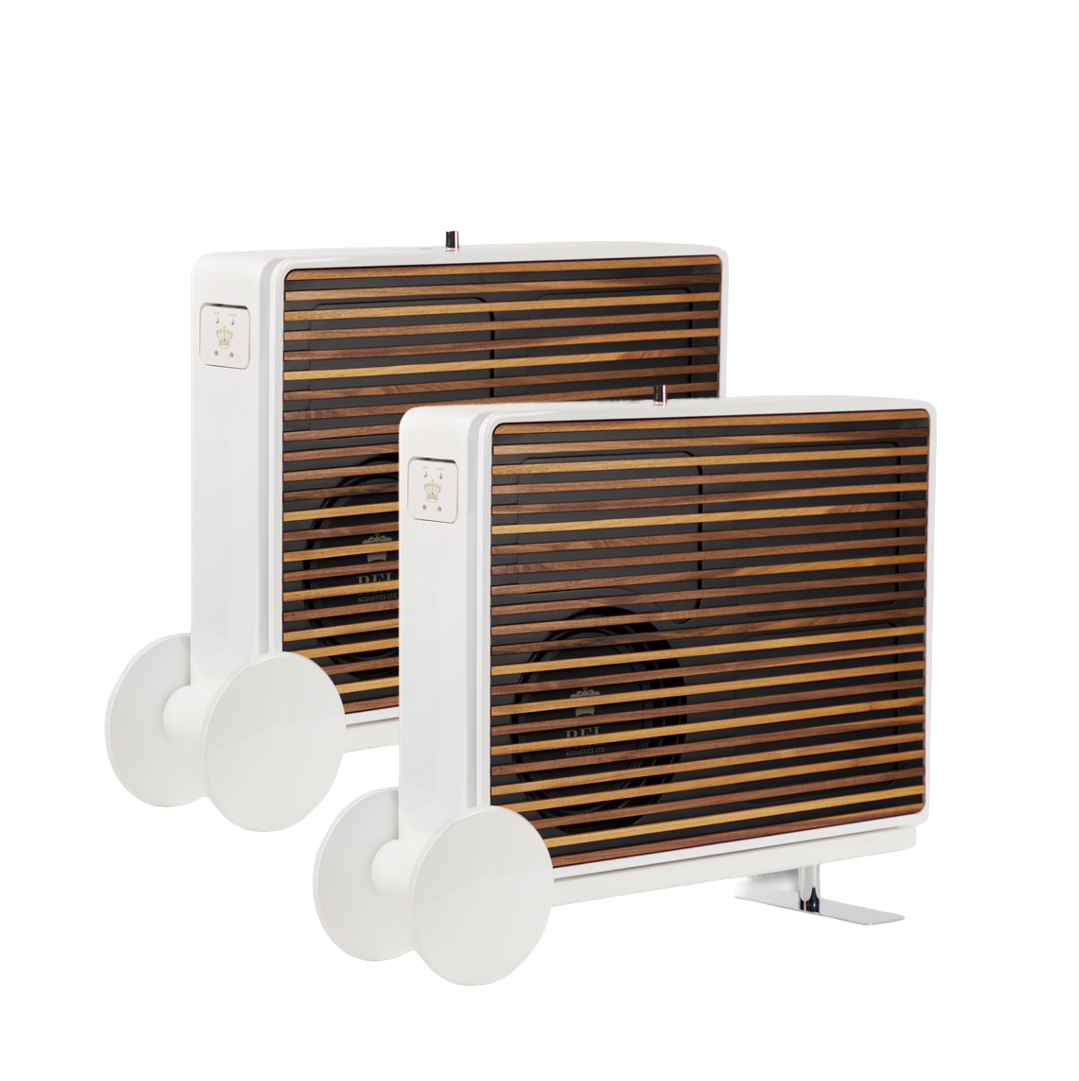

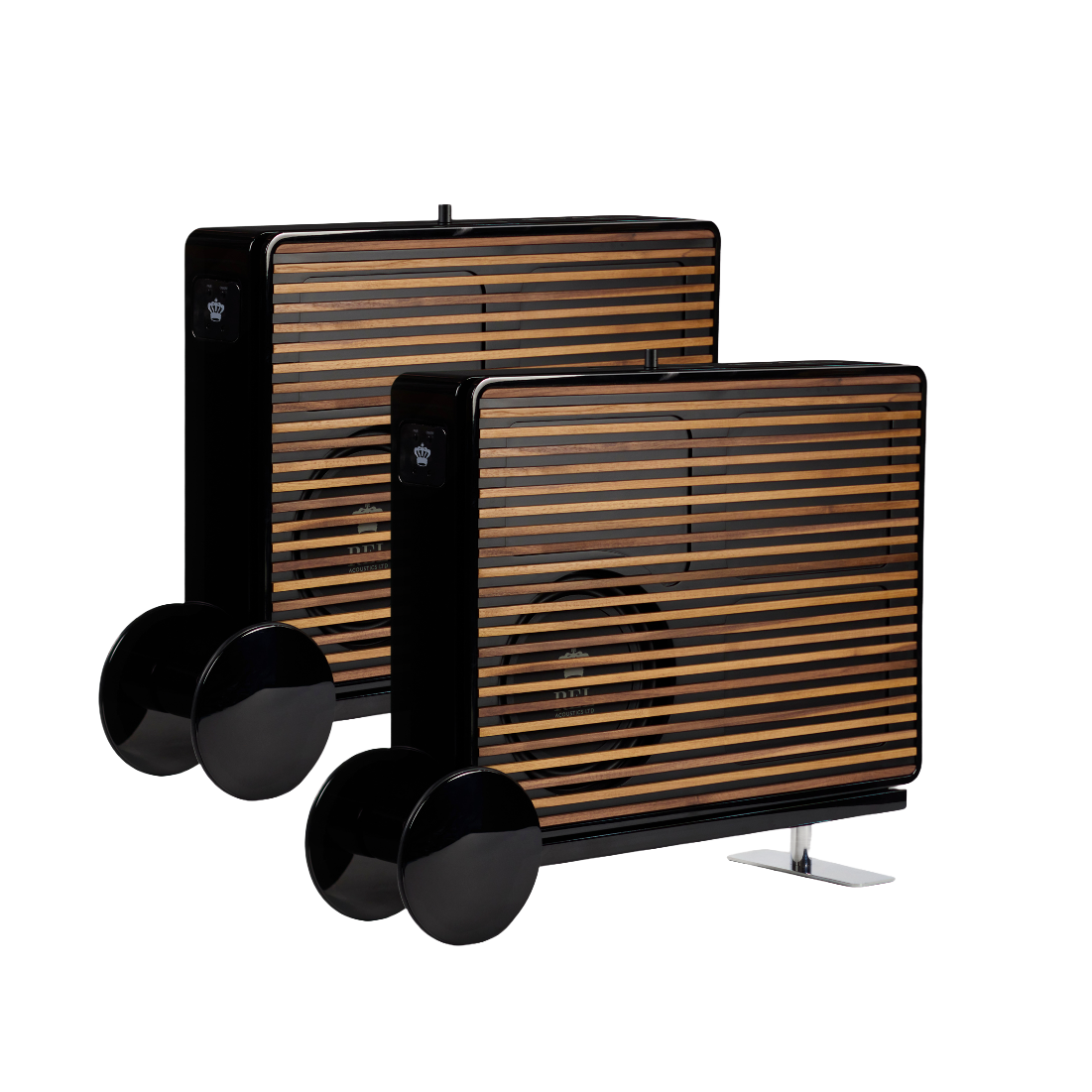

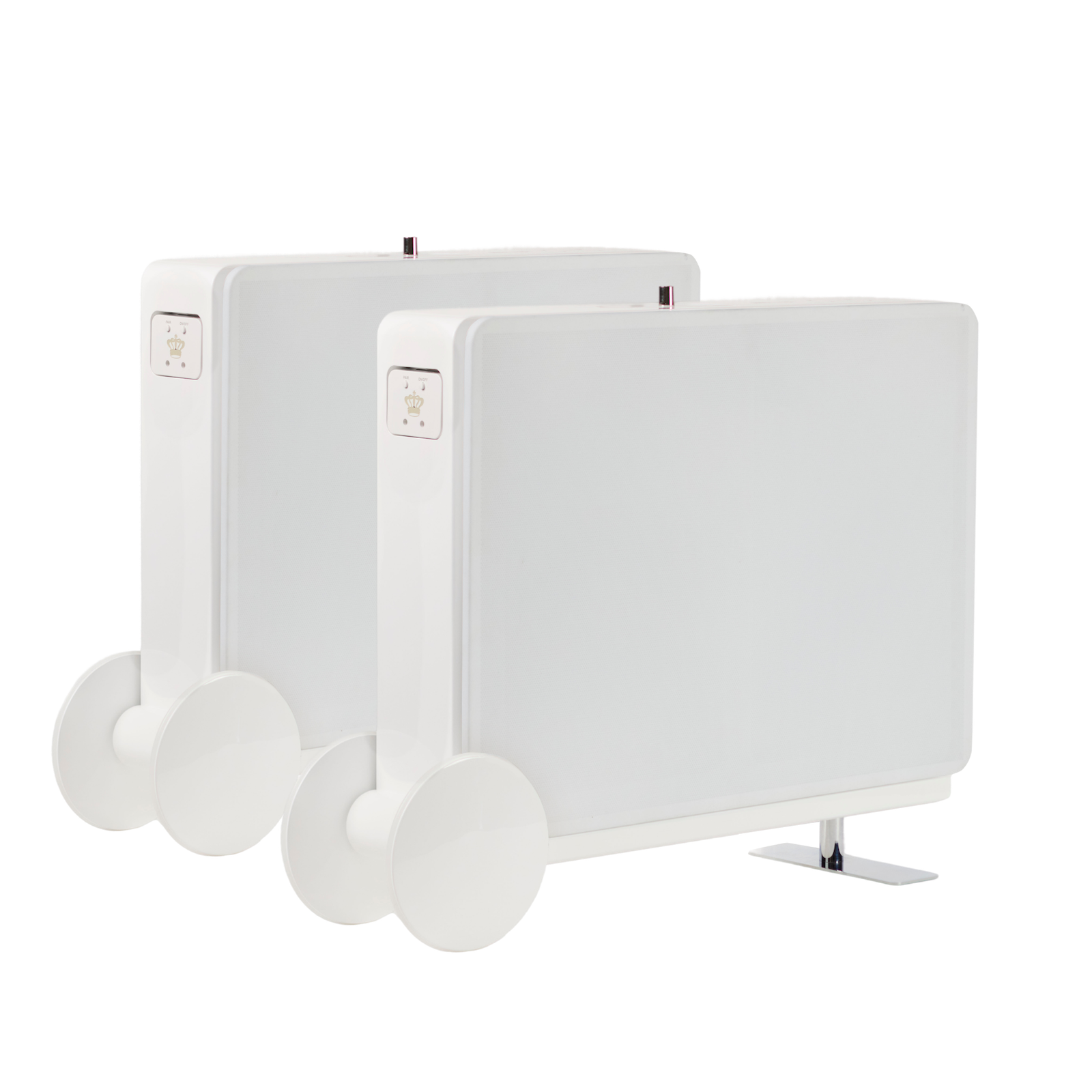

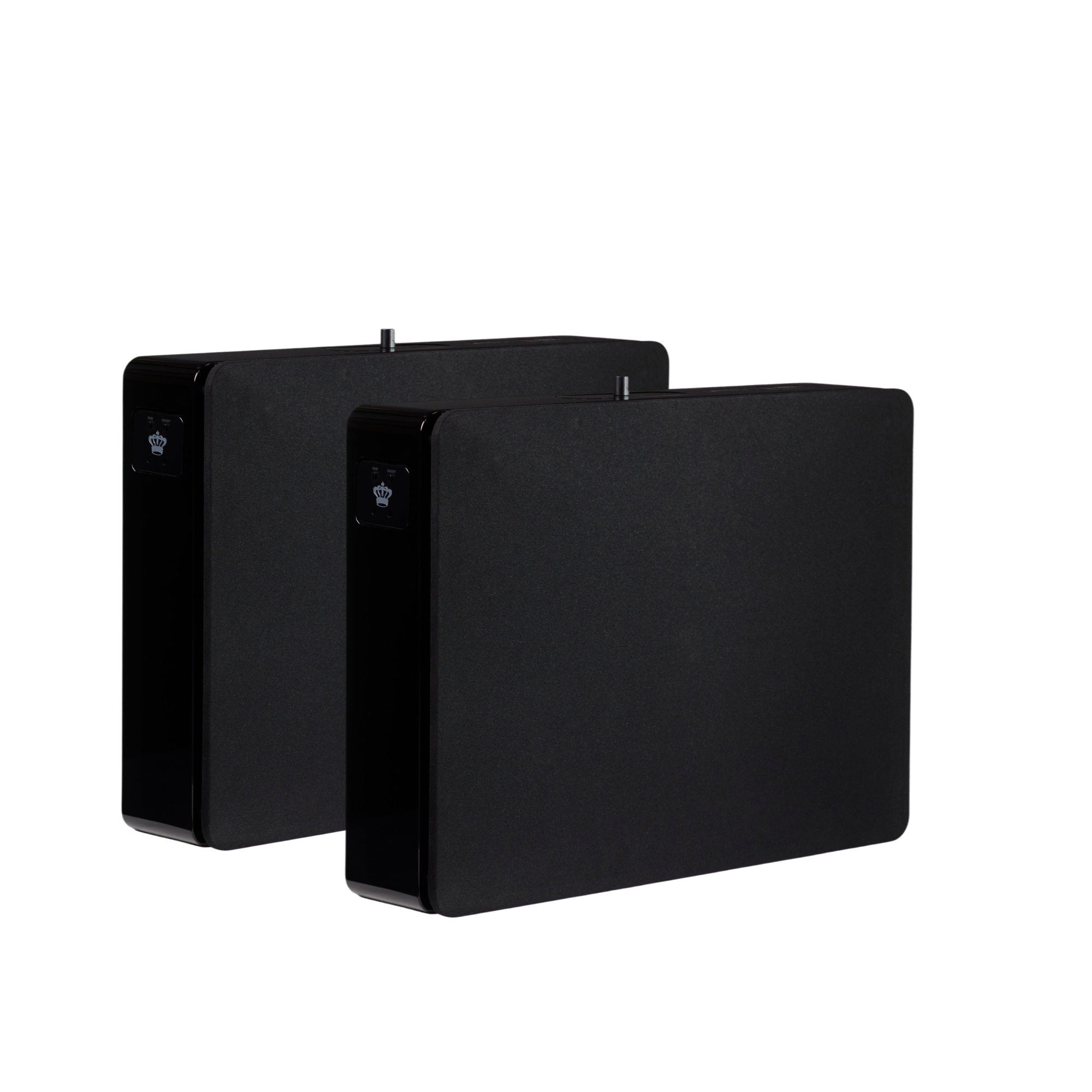

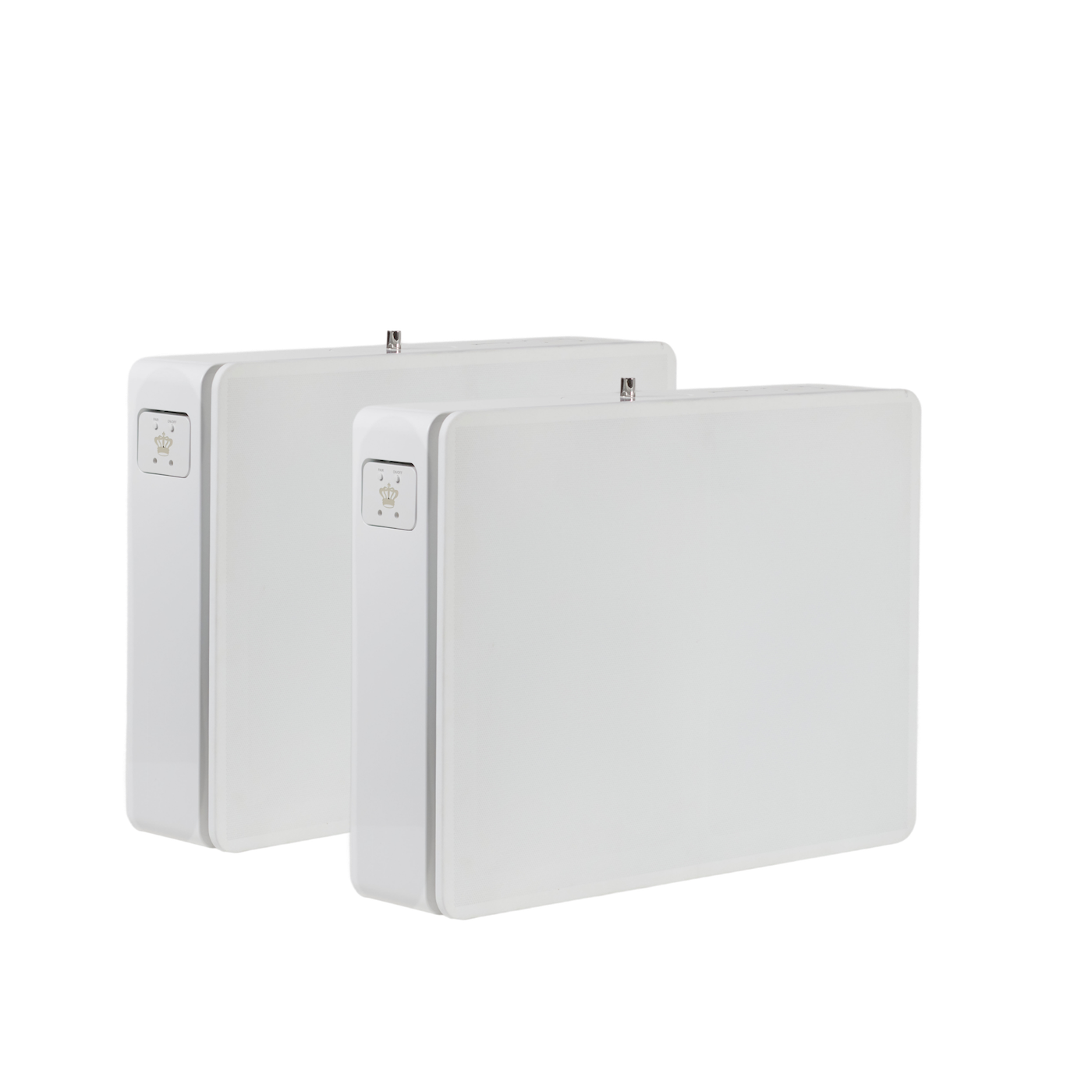

Stereo Pair

Add-On Accessory:No Cart

No Cart

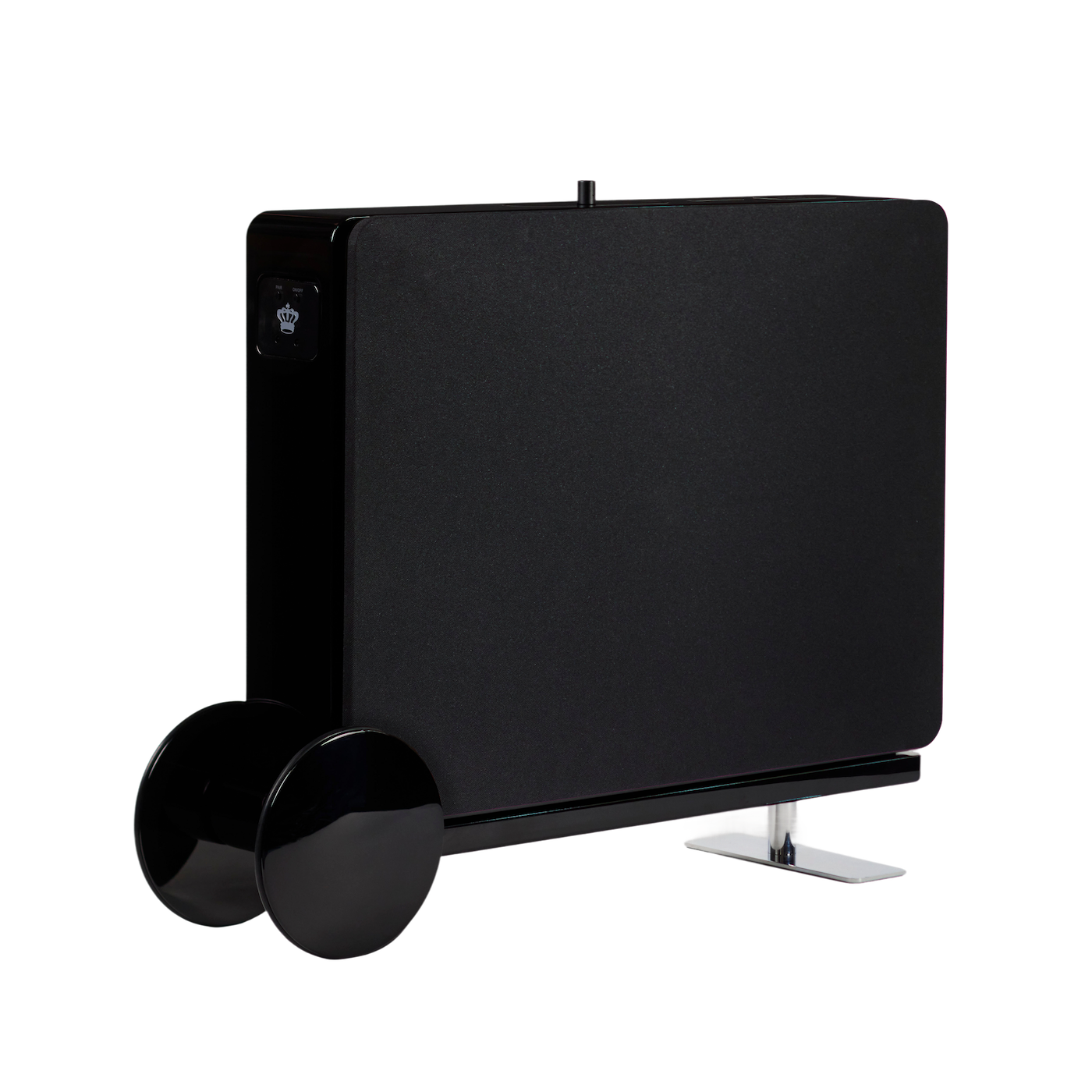

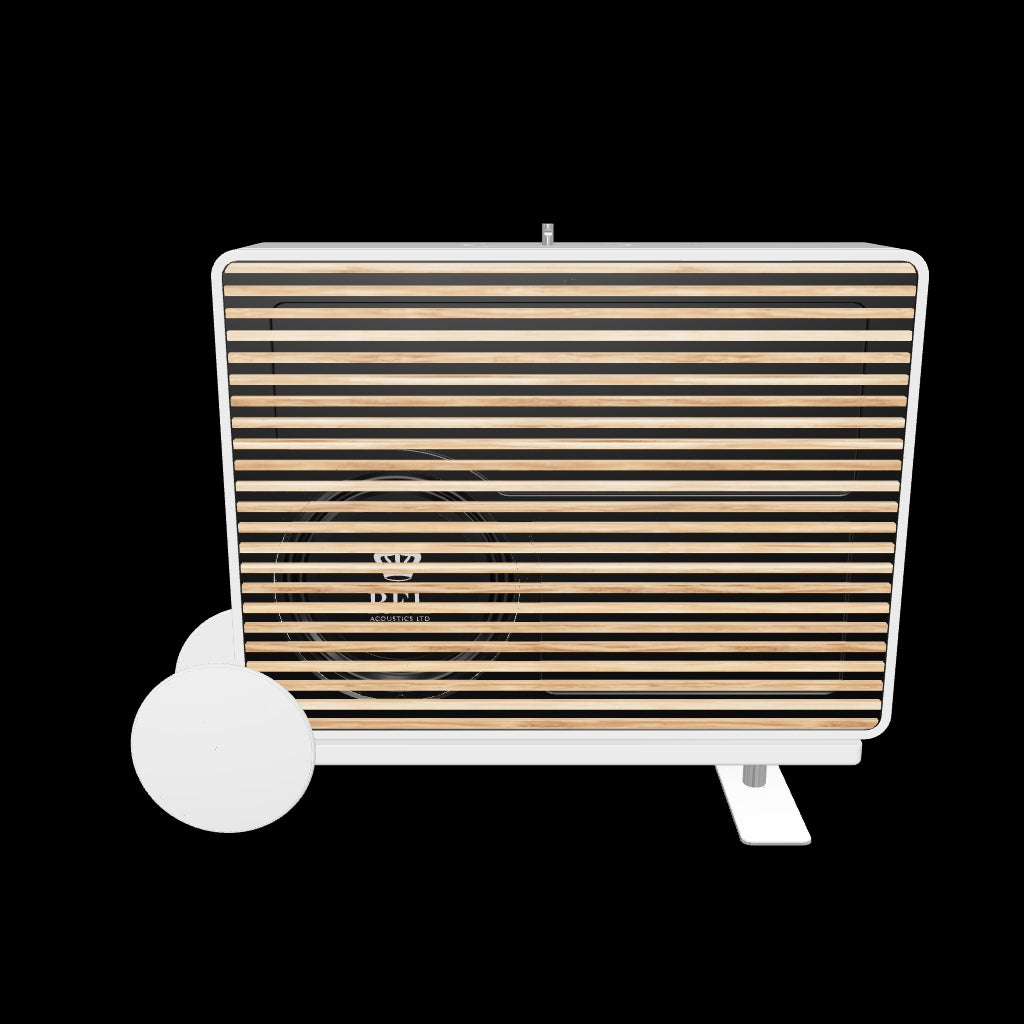

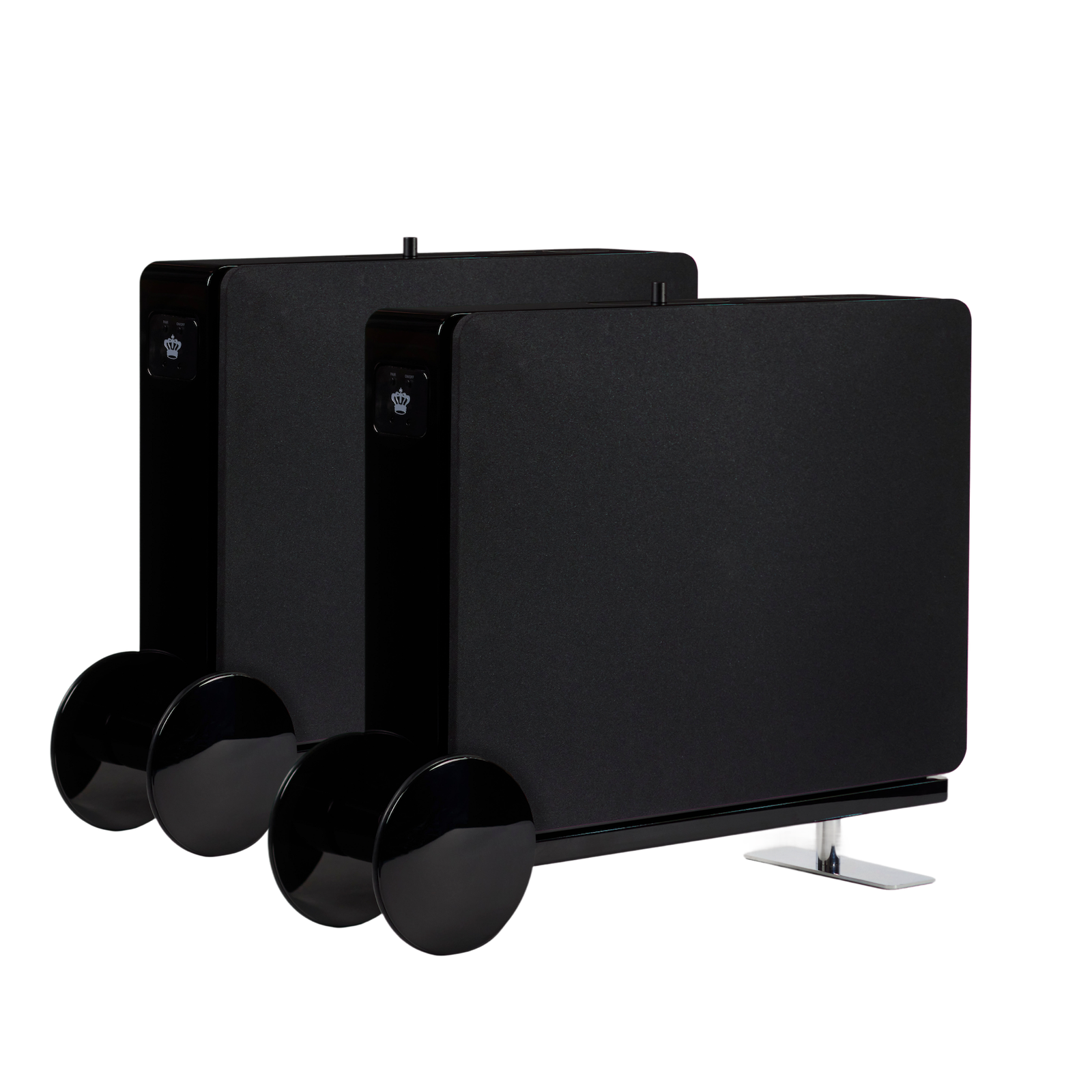

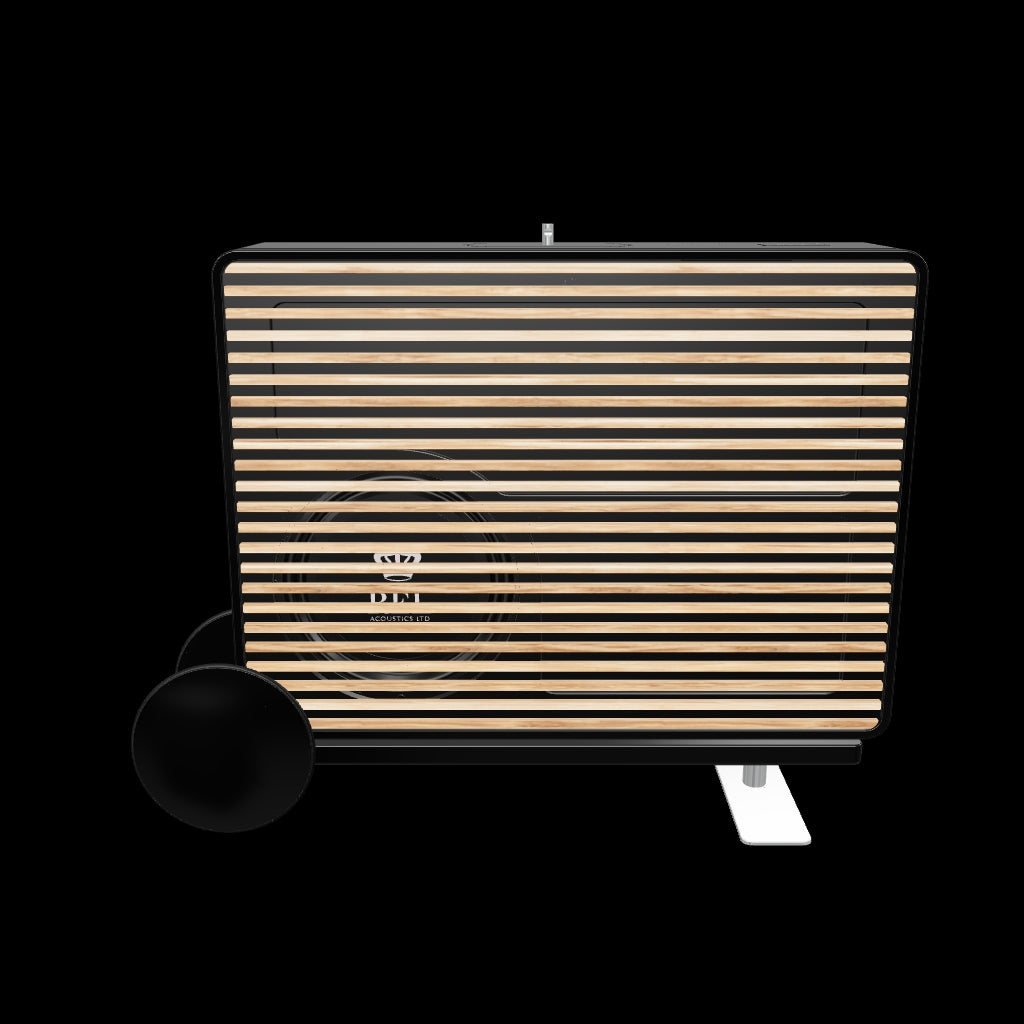

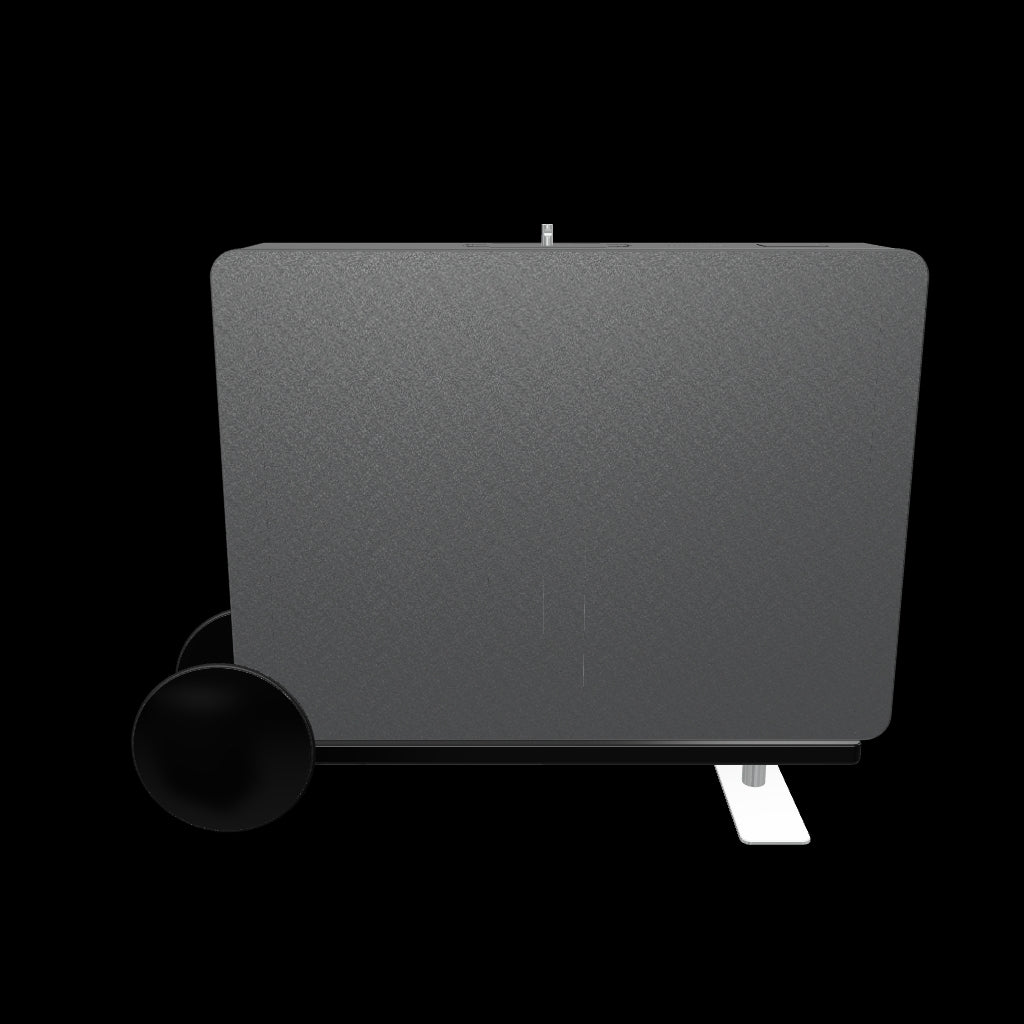

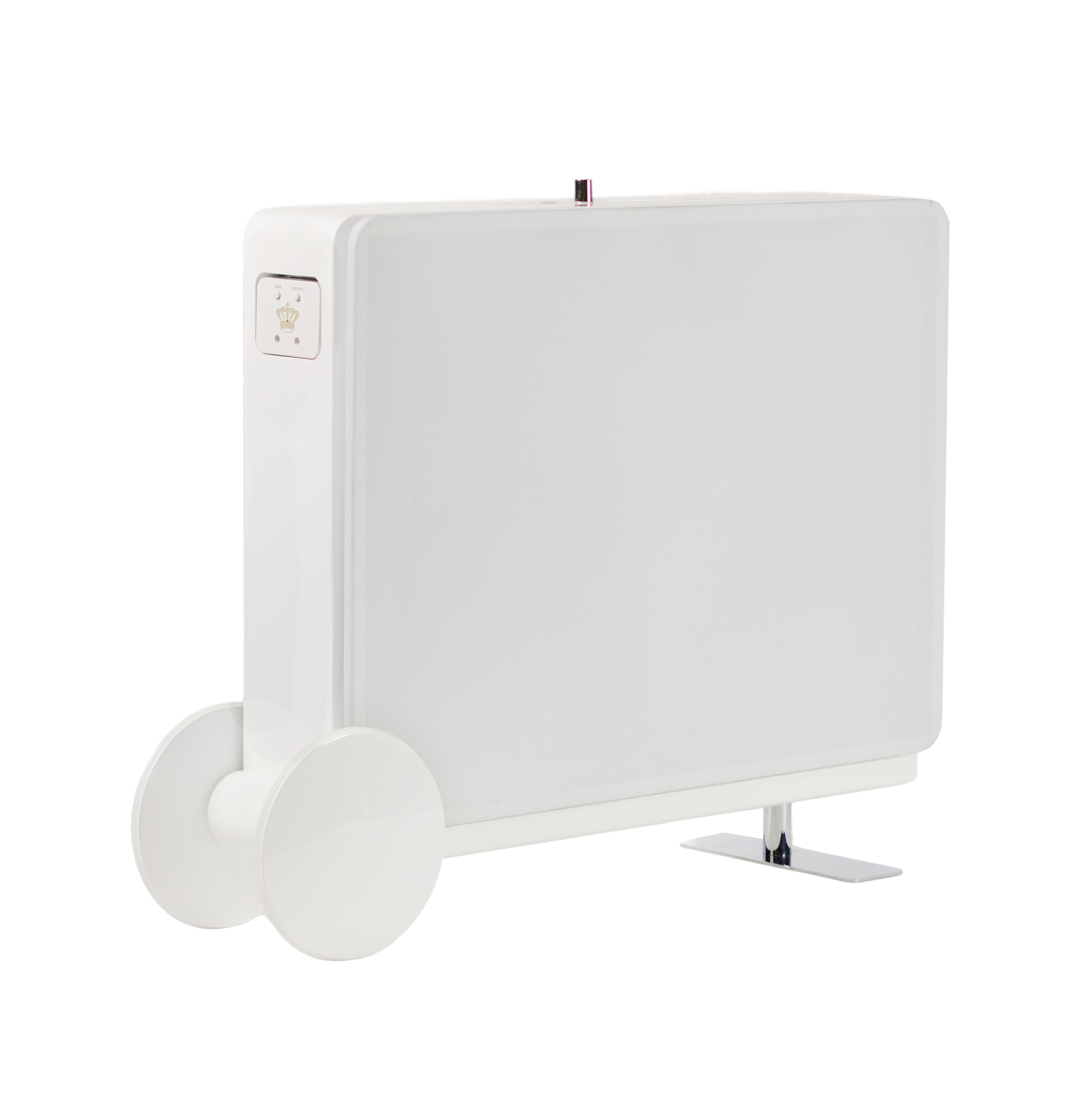

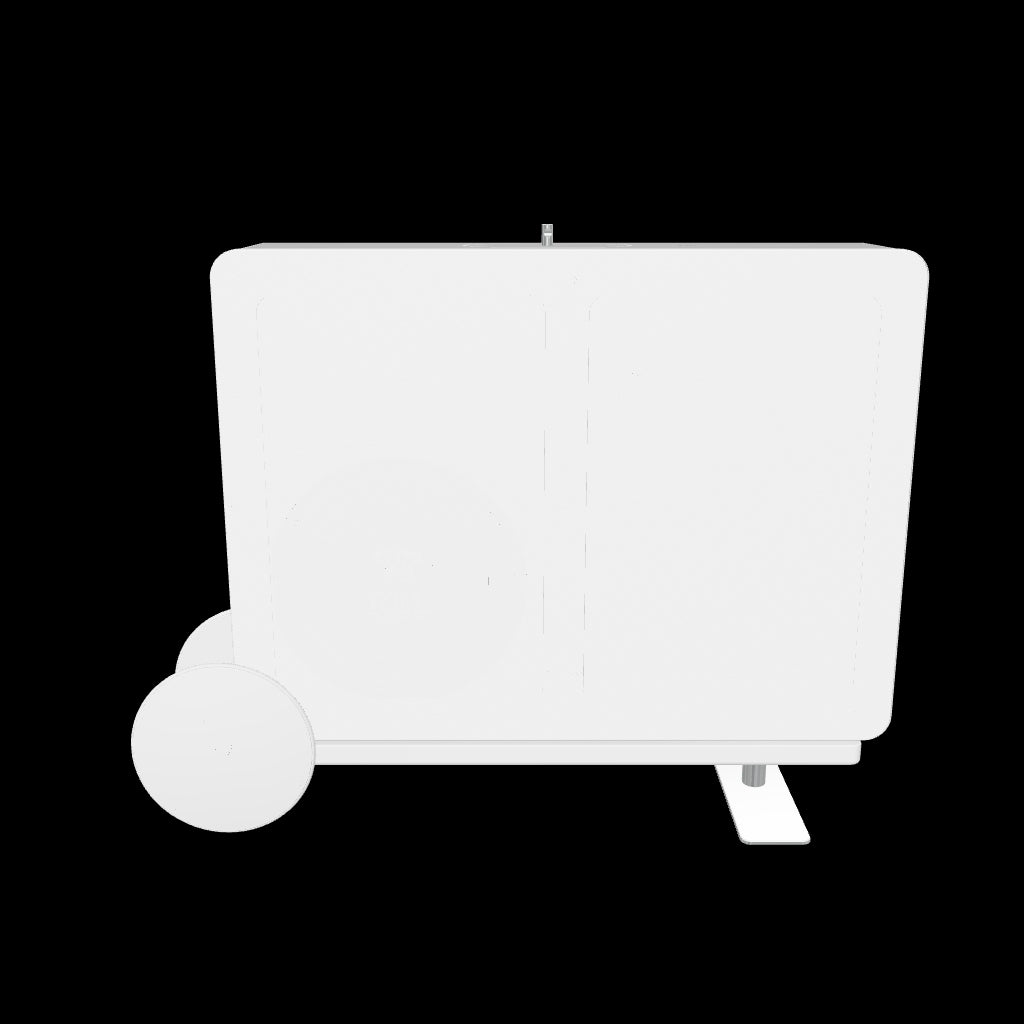

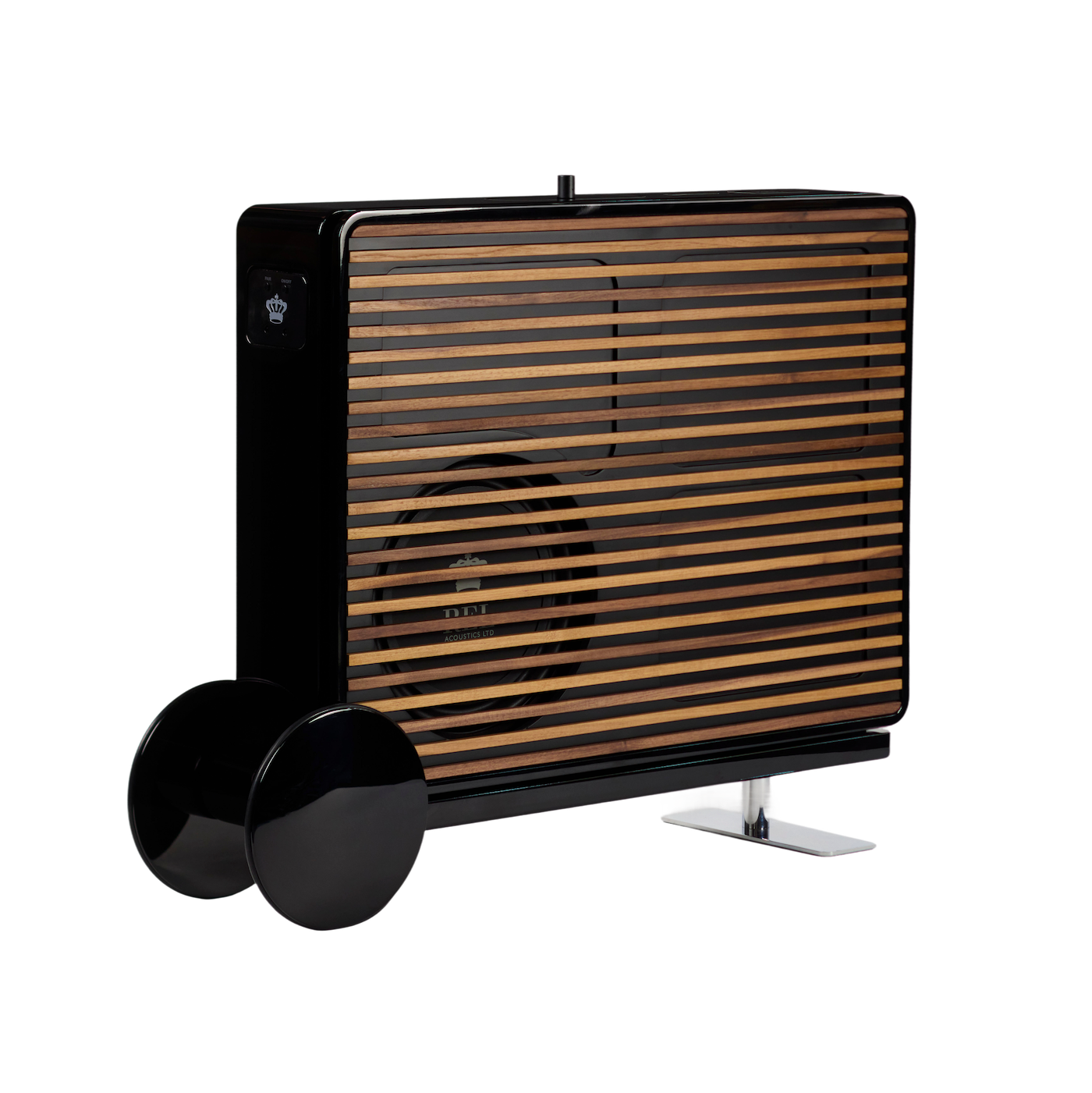

Planar Cart

Find It Locally

Delivering More Than Sound

Free Shipping

3 Year warranty

60 day trial & free return

60 day Price Protection

Lifetime Customer Support

Learn More

Planar PL-2

Single Subwoofer
Black/Cloth Grille (included)
No Cart

$3,299

Deep Bass, Minimal Space

REL Performance in an Ultra-thin Form

Traditional subwoofers often demand significant floor space to produce deep, powerful bass. PL-2 takes a different approach. By working in close relationship with the wall behind it, Planar uses boundary effect coupling to make the wall part of the acoustic system projecting bass into the room with scale, depth, and authority that feels far larger than the product itself.

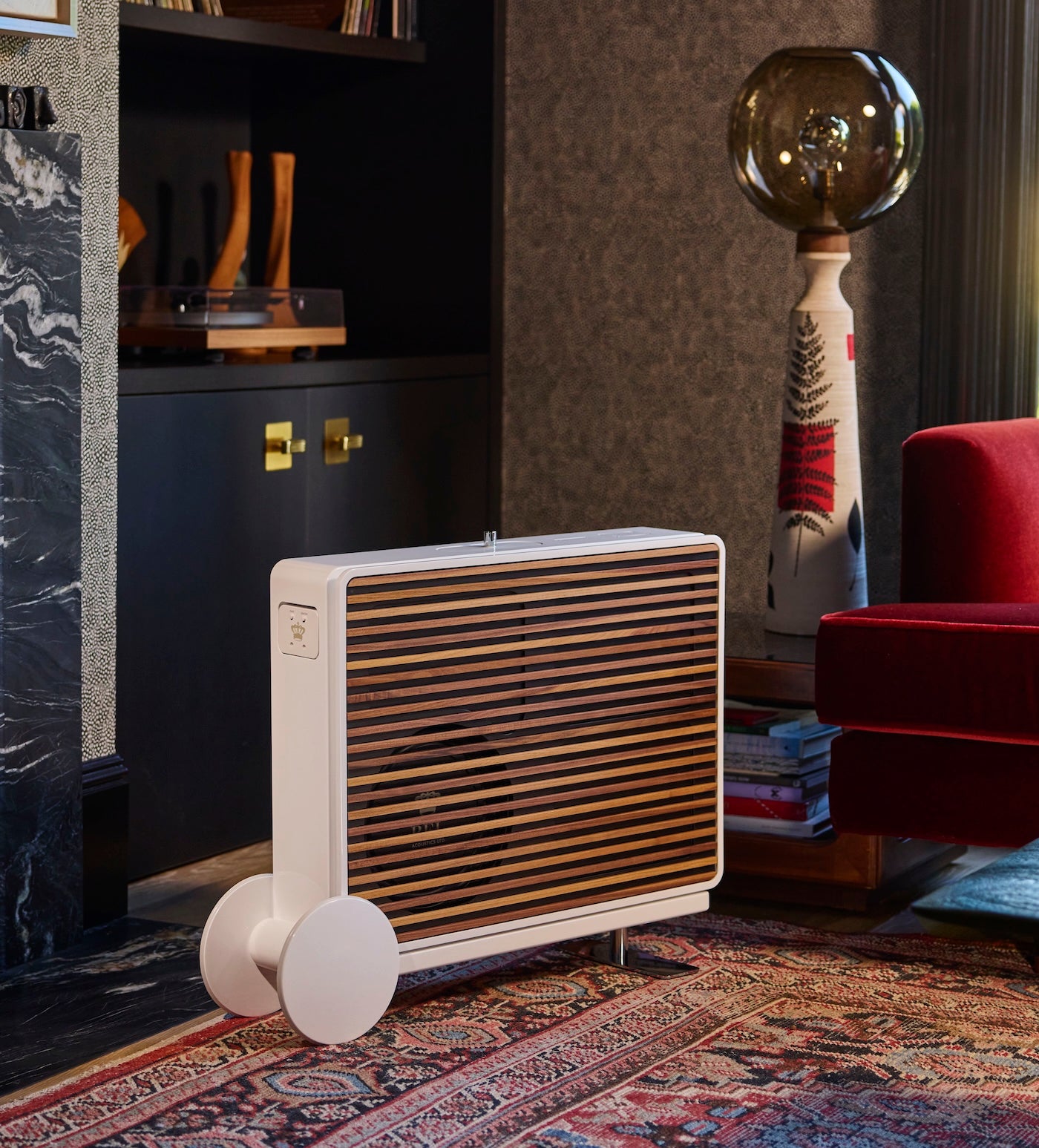

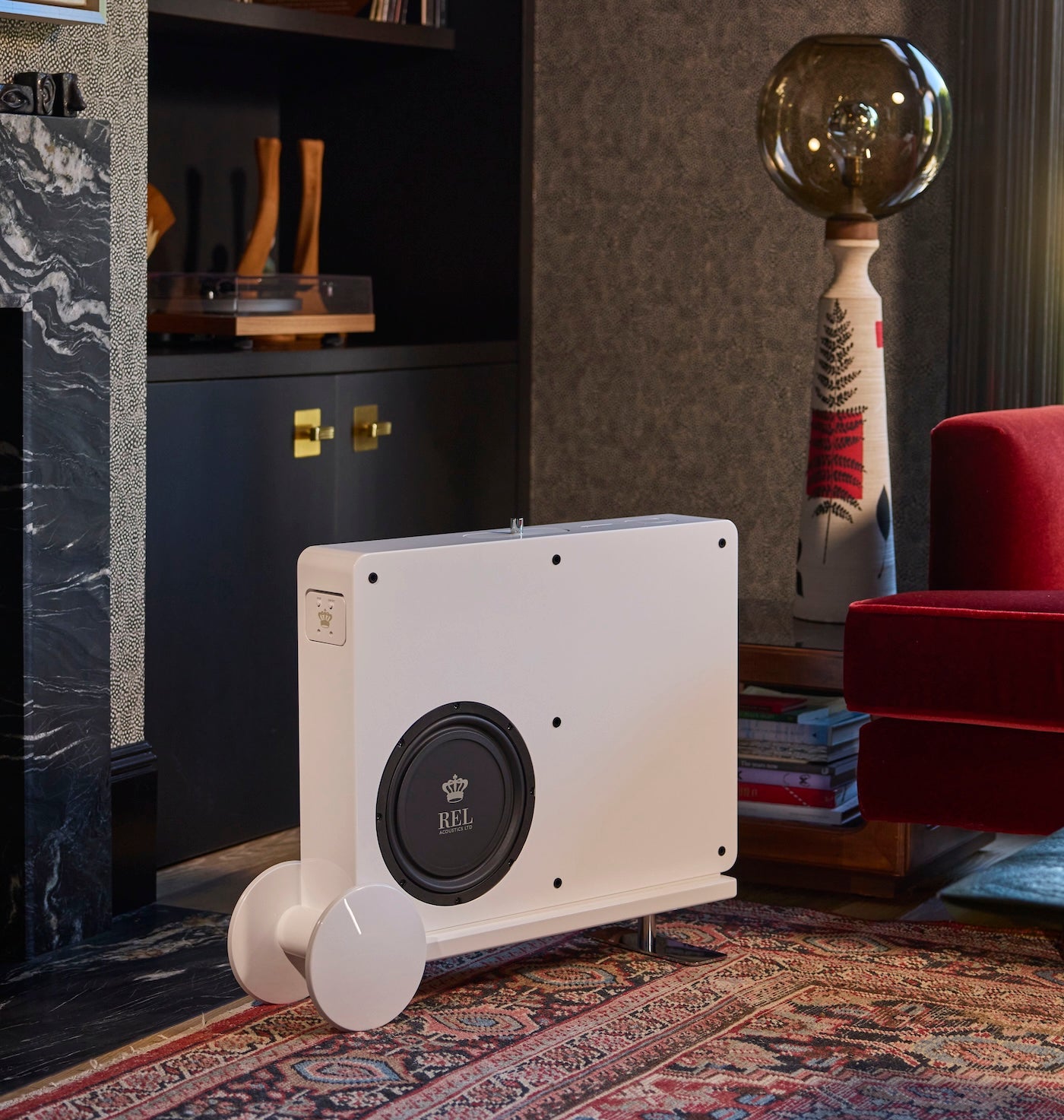

Whether mounted directly on-wall or placed close to the wall using the optional Cart, PL-2 delivers powerful, immersive performance for modern rooms and open living spaces where traditional subwoofers struggle to integrate gracefully.

REL Performance in an Ultra-thin Form

Design

Designed for Modern Living

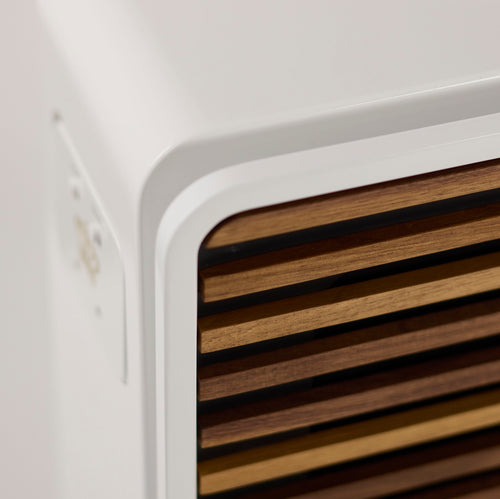

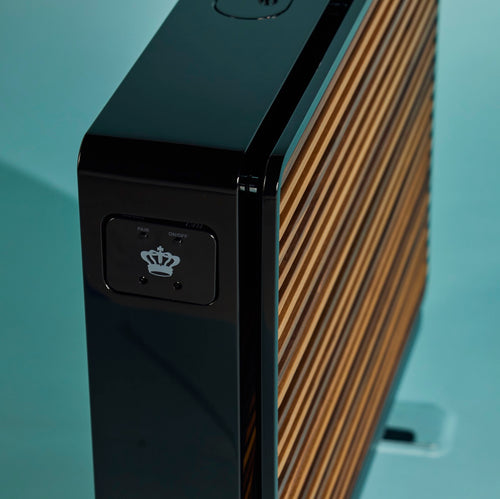

Planar PL-2 was designed to deliver true REL performance from an ultra-thin form that integrates naturally into modern spaces. Its slim proportions, flowing radiused edges, and deep lacquer finishes allow it to occupy spaces where traditional subwoofers often feel intrusive. Every detail was carefully considered, from the recessed controls and concealed cable management to the optional hardwood grille upgrades that further elevate its architectural presence.

Available in black or white lacquer finishes, Planar PL-2 combines elegant industrial design with purposeful engineering, creating a subwoofer designed not only to sound extraordinary, but to live beautifully within the room itself.

To help manage the interaction between the cabinet and the wall, Planar incorporates REL’s VIMAR (Vibration Isolation Material and Resonance Control) system. Integrated into the mounting brackets, VIMAR reduces the transfer of unwanted energy into the wall while preserving the speed and integrity of the bass. The result is cleaner, more controlled low-frequency performance.

Driver

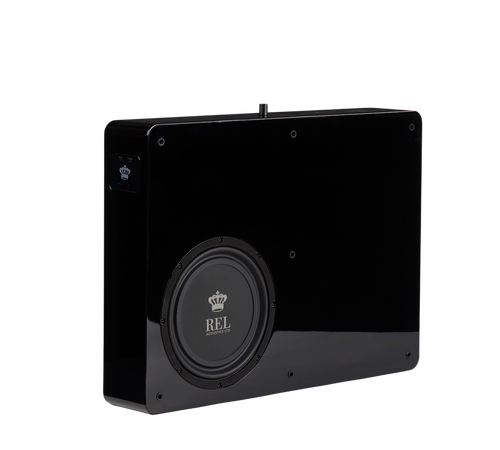

Flat Piston. Massive Scale

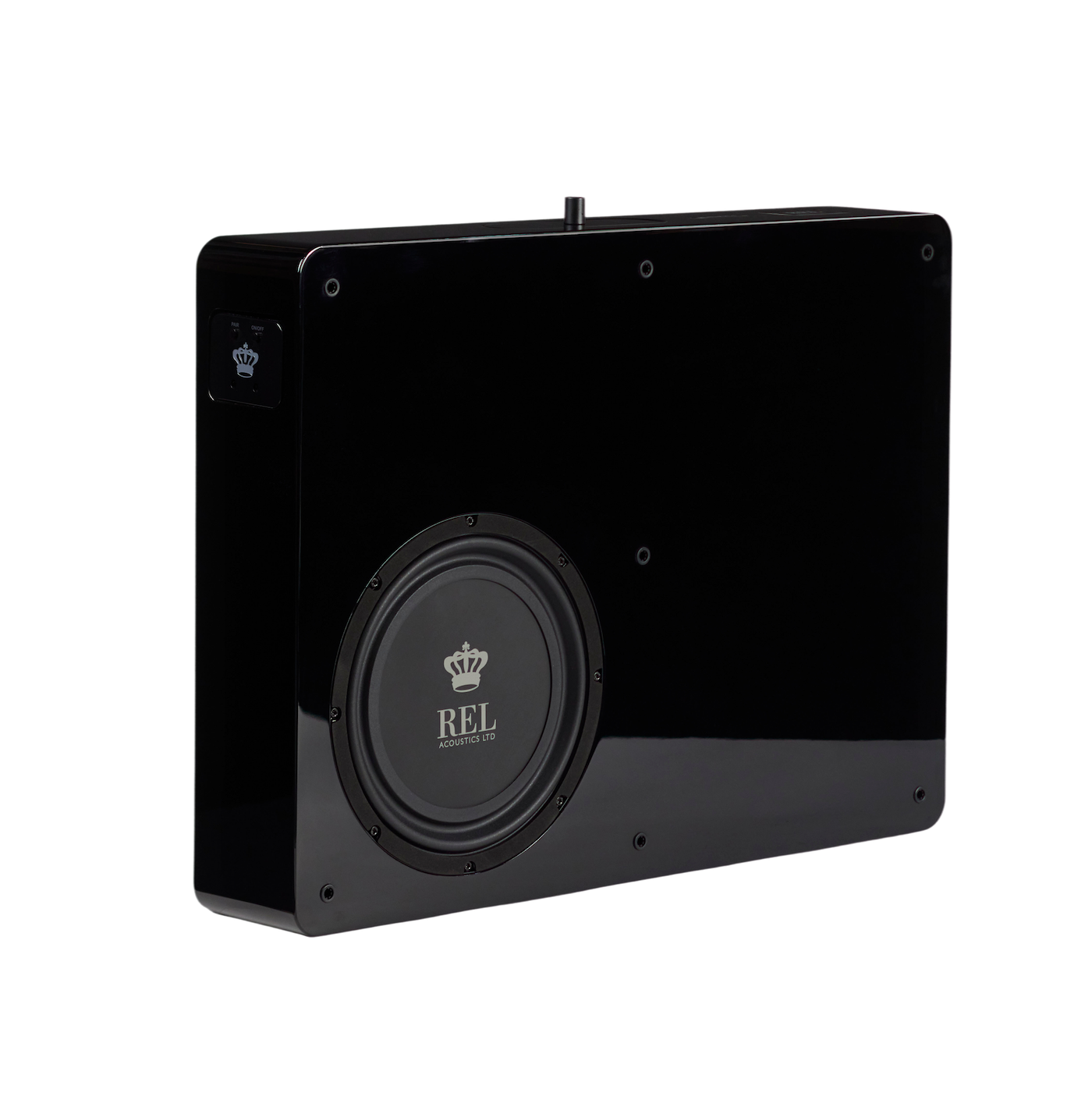

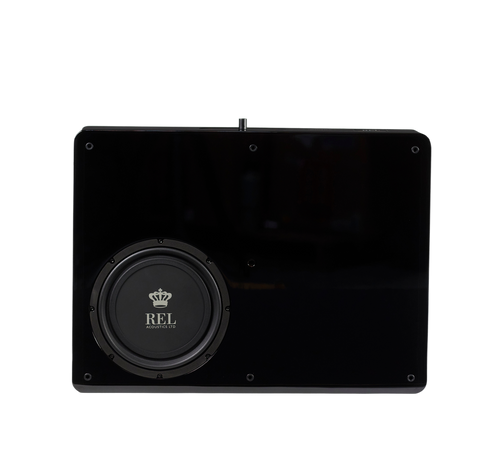

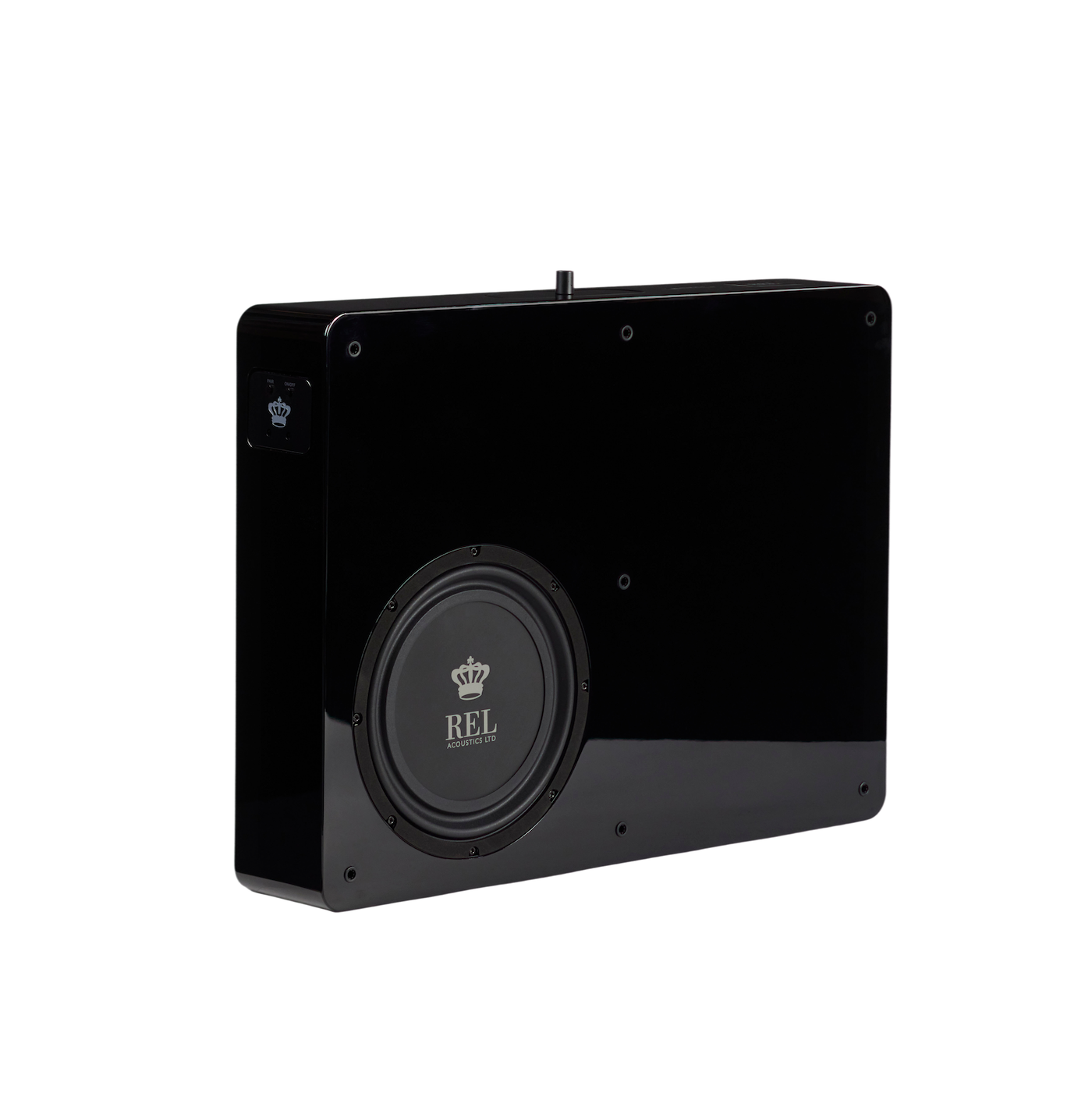

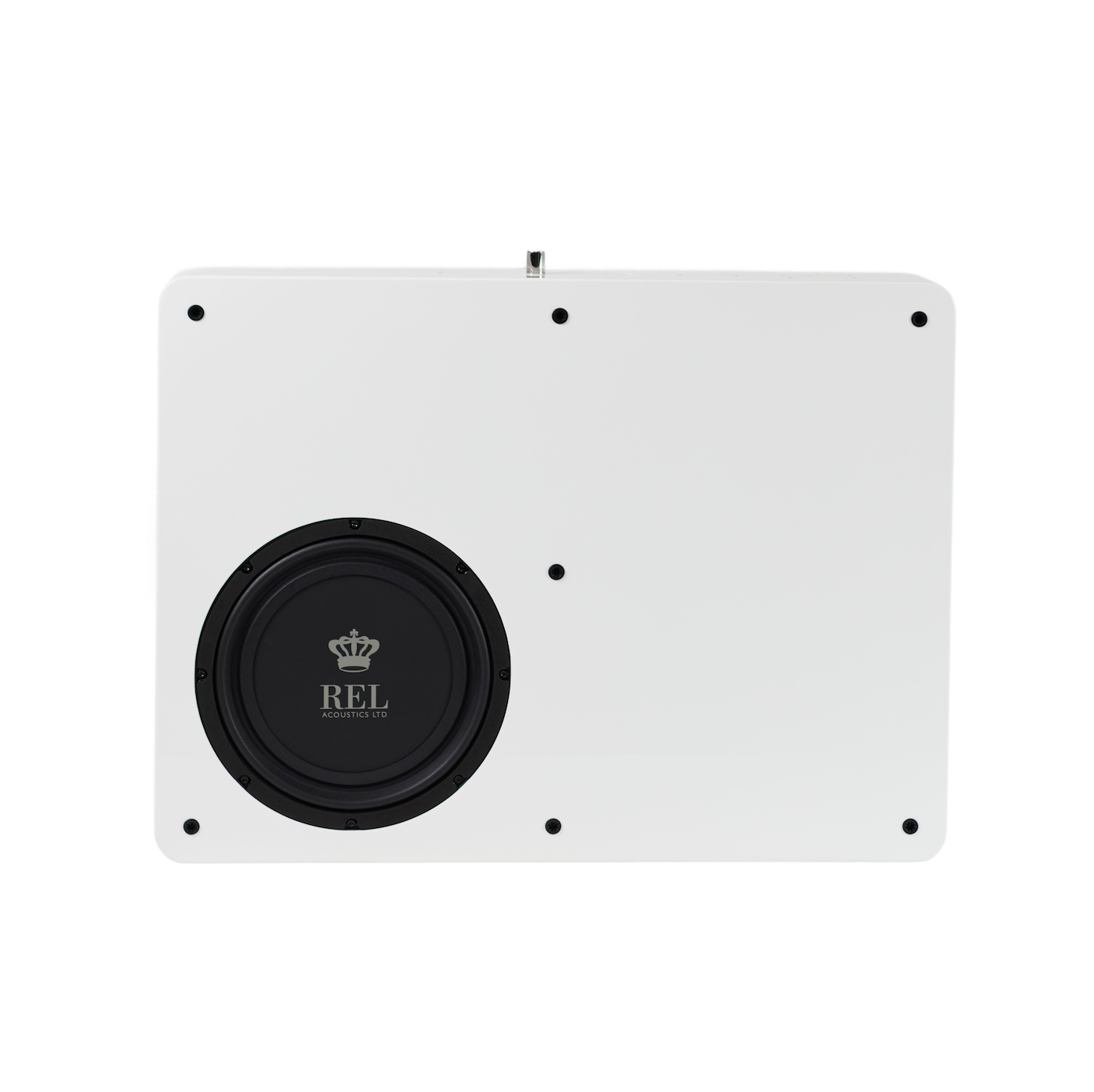

Developed exclusively for Planar, PL-2’s new 8” Flat Piston driver was engineered to deliver remarkable output from an ultra-thin cabinet. Producing deep, powerful bass from a driver barely 80mm deep required an entirely new approach to excursion, rigidity, and control. The result is fast, dynamic bass that extends to 27Hz, reaching more than an octave below the fundamental range of many acoustic instruments while delivering the scale and authority expected from far larger subwoofers.

Boundary-Coupled Bass

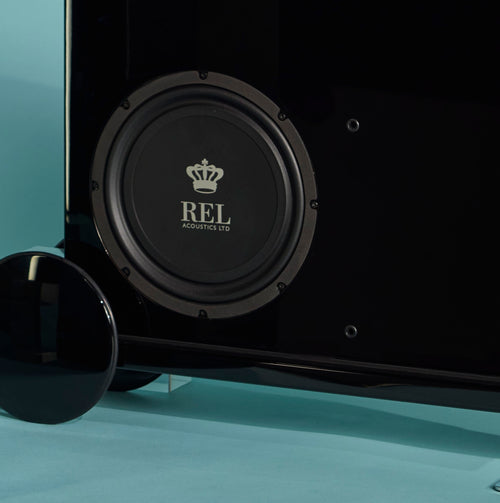

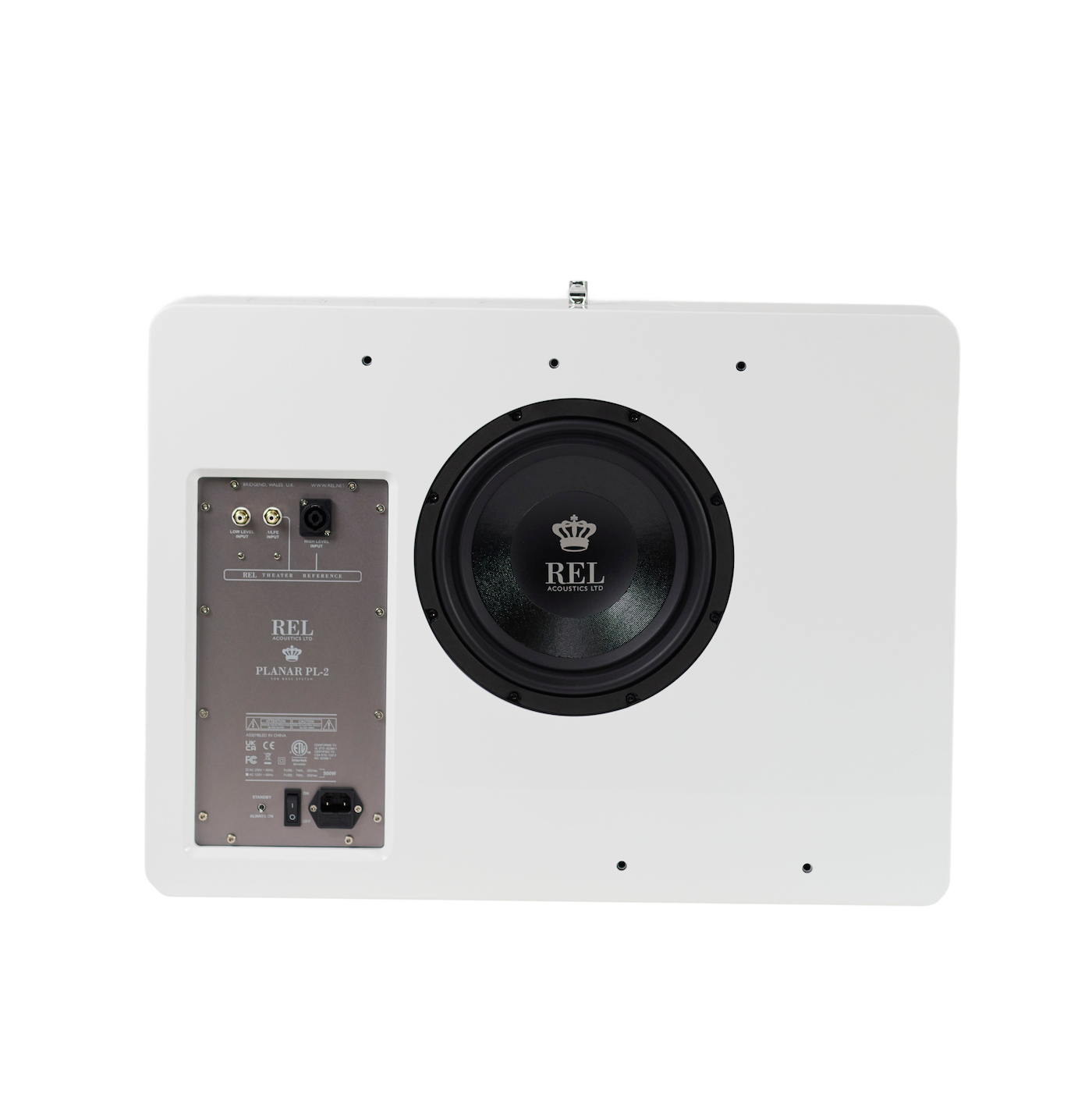

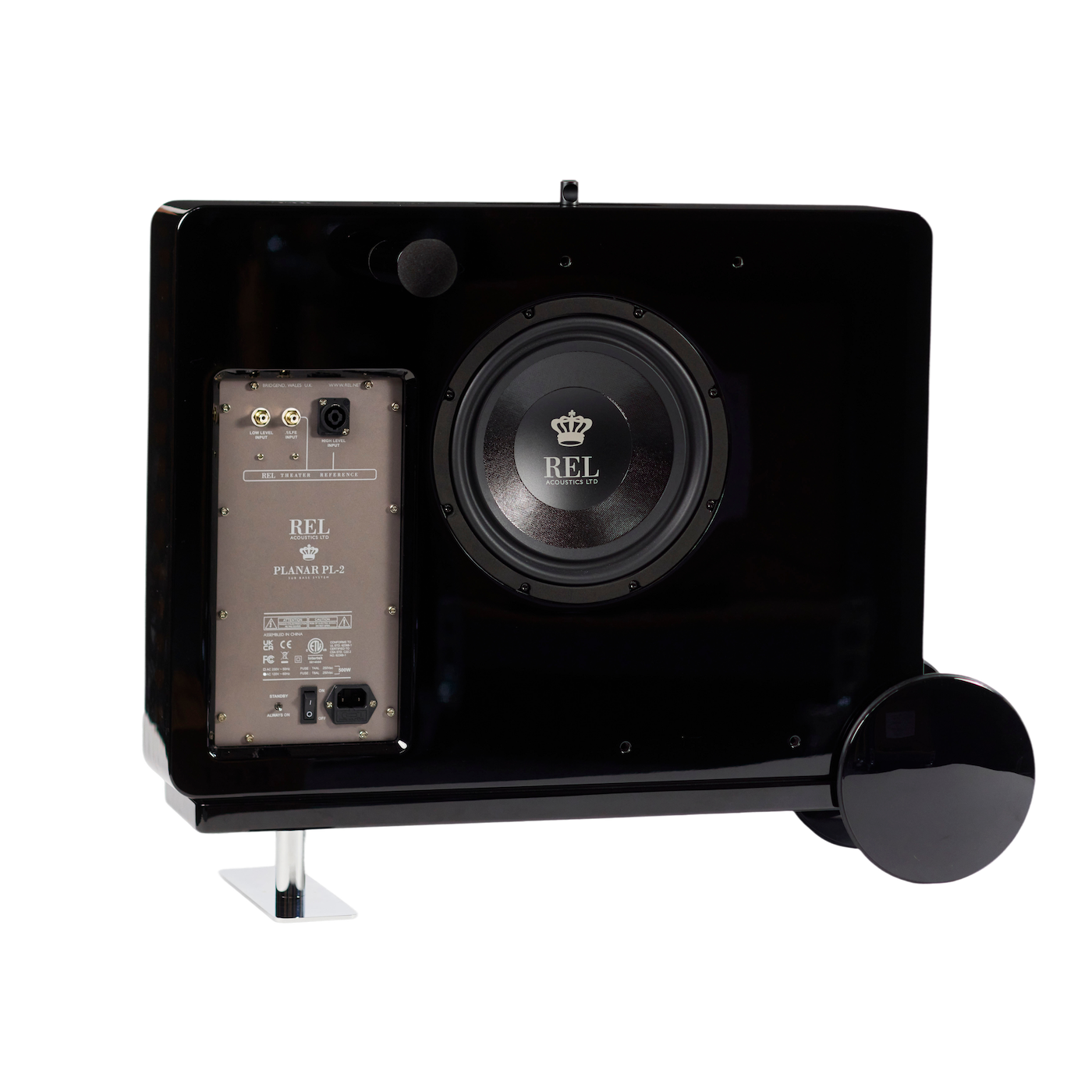

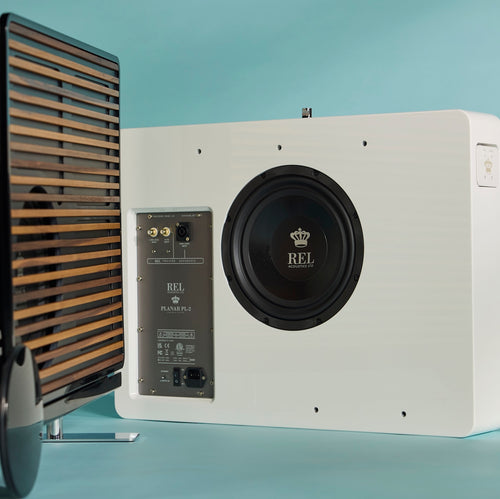

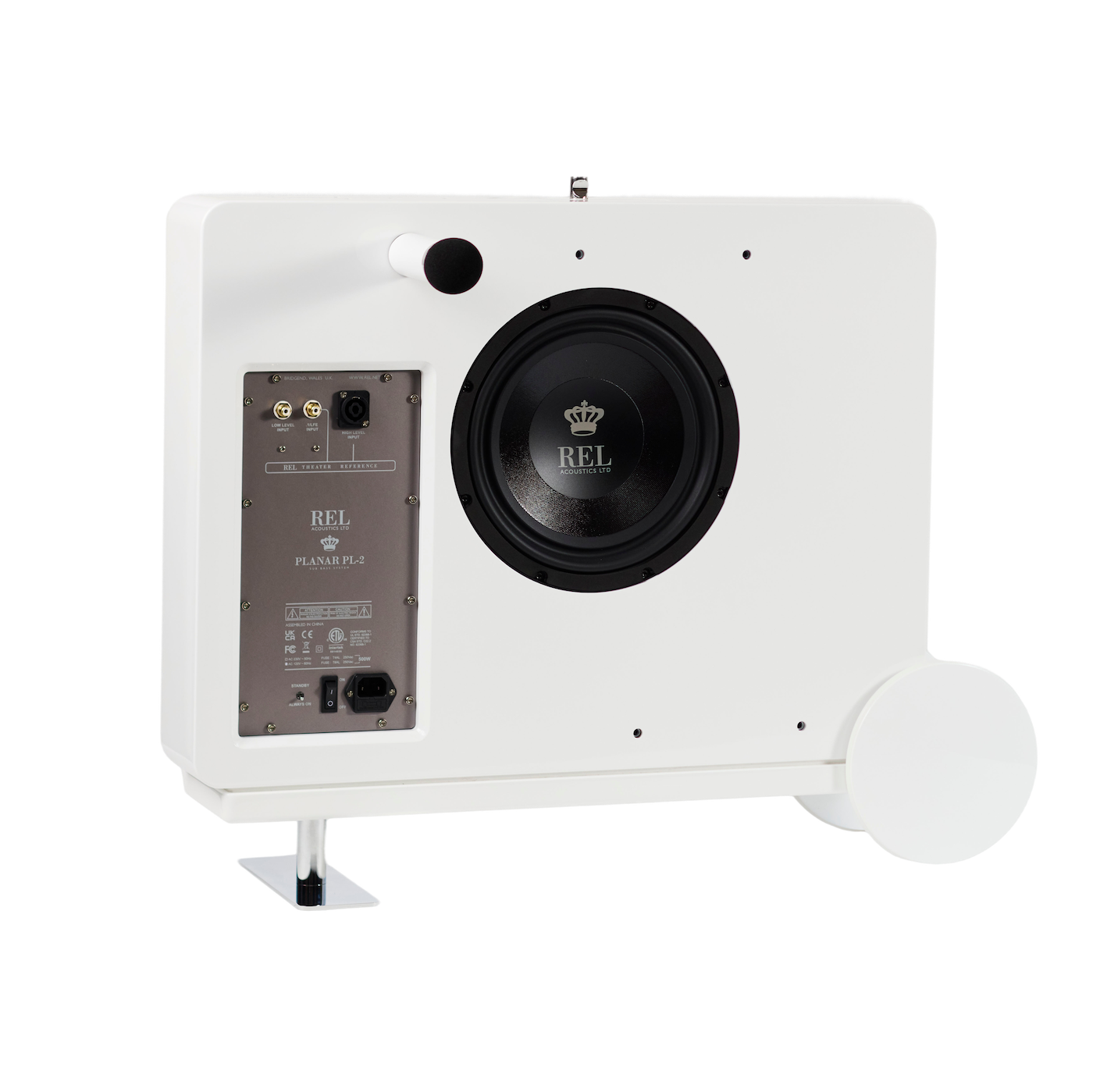

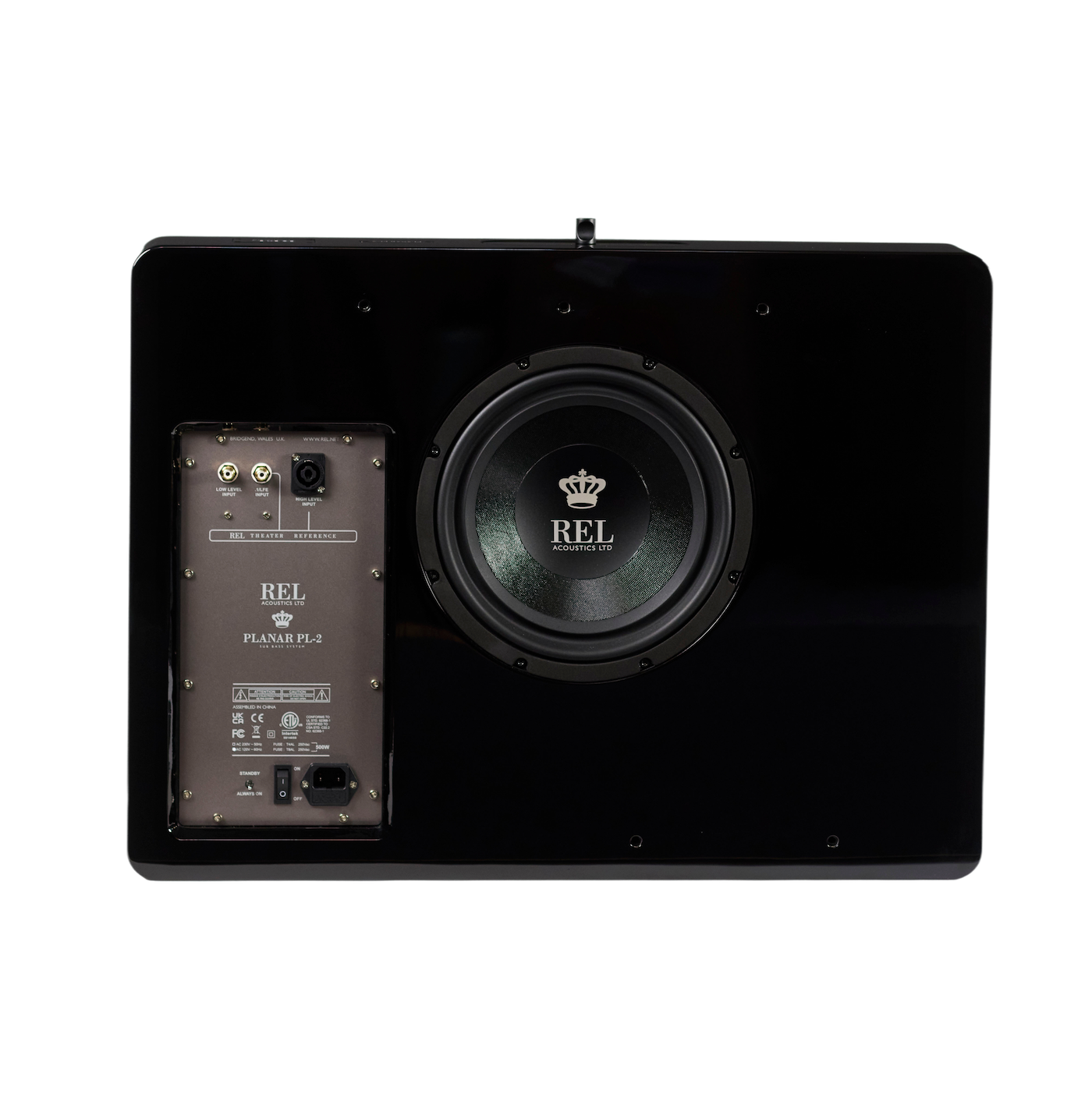

A specially tuned 10” long-stroke passive radiator, featuring a lightweight paper cone reinforced with a rigid aluminum center cap, fires toward the wall behind Planar, using boundary effect coupling to reinforce and expand low-frequency output. Working in close relationship with the wall surface, PL-2 transforms the wall into part of the acoustic system, producing deep, room-filling bass and remarkable scale from an ultra-thin form.

The result is bass that feels effortless, expansive, and far larger than the cabinet itself suggests.

Amplifier

Effortless Power, Proven Reliability

PL-2 is powered by a 550-watt Pure Class D amplifier engineered to deliver effortless dynamics and exceptional control from an ultra-thin platform. Proven across thousands of REL subwoofers, this latest generation design combines high current delivery with long-term reliability, allowing PL-2 to produce fast, powerful bass with remarkable composure. Conservatively rated at 500 watts, the amplifier delivers a clean 600 watts on REL’s test bench under demanding conditions.

The result is an amplifier capable of delivering the scale and impact demanded by both music and theater while remaining efficient, cool-running, and dependable over years of use.

Filtered to Perfection

REL’s fully analog input filters are central to Planar’s natural, seamless sound. By avoiding unnecessary digital processing, PL-2 preserves speed, timing, tonal balance, and the organic character that define great music and theater reproduction.

At the center is REL’s renowned High Level Connection, allowing Planar to receive the same signal fed to your main speakers for exceptional integration across the entire system. Combined with our all-analog PerfectFilter circuitry, PL-2 delivers deep, extended bass with remarkable clarity, speed, and balance.

For dual-use music and theater systems, dedicated High Level and .1/LFE inputs allow both signals to operate simultaneously, preserving musical coherence while delivering the full impact of cinematic low-frequency effects.

Wireless

Wireless Freedom Included

Unlike traditional subwoofers that require long visible cable runs, Planar PL-2 includes Airship Direct wireless technology as a fully integrated part of the design. By eliminating the need for signal cables, Planar preserves the openness and visual simplicity of modern living spaces while maintaining the speed, dynamics, and musicality expected from a REL.

The compact receiver integrates directly into a concealed rear-panel compartment and arrives pre-paired from the factory for effortless setup. No apps. No software updates. No complicated configuration. Simply connect power, position Planar, and experience full-range REL performance with the freedom of uncompromised wireless operation.

Just connect power, place it, and experience full-scale REL performance wirelessly.

Specifications

Technical Specifications

Type

(1) Front-firing active woofer, (1) Rear-firing passive radiator

Active Driver Size & Material

8in. (205mm) FlatPiston active long-throw, steel chassis

Passive Radiator Size & Material

10in. (250mm) FibreAlloy cone, steel chassis

Low Frequency Extension

-6 dB at 24 Hz, in room

Input Connectors

HIGH-LEVEL Neutrik SpeakOn, LOW-LEVEL RCA, LFE RCA

Output Connectors

Power Output

550 watts (RMS)

Amplifier Type

Pure Class D

Wireless Capability

Built-in Wireless

Dual Parametric Filter

N/A

Finish

Gloss Piano Black or Gloss White Lacquer

Protection System

Fully Electronic Set Safe

Yes

D.C. Fault

Yes

Output Short

Yes

Mains Input Voltage

100-240 volts, selectable

Fuses

4A for 230V operation, 8A for 120V operation

Supplied Accessories

Mains Lead

Yes, 90 degree to permit on wall mounting

Neutrik Speakon

Yes 1.5m cable intended for use with AirShip Direct transmitter

Interconnect

Supplied Accessories: Power adapter, HIGH-LEVEL cable, X2 RCA cable

User Manual

Yes

In the interest of product development, REL Acoustics Limited reserve the right to vary these specifications without notice.

Dimensions

DIMS

W x H x D
25.6 x 18.9 x 5.7in.
(650 x 480 x 144mm) Add 1.5in.
(39mm) depth for on wall bracket

Net Weight

44.6lbs. (20.25 kg)

Faq

How is PL-2 different from PL-1?

PL-2 extends the core Planar philosophy into larger rooms and more demanding systems. Compared to PL-1, it delivers greater output, deeper extension, and more physical scale while preserving the speed, control, and musicality that define REL.

What is REL’s VIMAR system?

VIMAR (Vibration Isolation Material and Resonance Control) is a REL-developed system integrated into Planar’s mounting brackets to help manage the interaction between the cabinet and the wall surface. By helping reduce the transfer of unwanted energy into the wall, VIMAR preserves the speed, balance, and control of the bass while improving overall low-frequency performance.

What active driver does PL-2 use?

PL-2 features a newly developed 8-inch flat piston driver engineered specifically for high output and control from an ultra-thin cabinet. Its rigid, controlled structure allows it to move with authority while maintaining composure and precision resulting in bass that feels both powerful and effortless.

Why does Planar use wall integration?

Planar uses the wall itself as part of the acoustic system. By firing its passive radiator toward the wall behind it, Planar leverages boundary effect coupling to reinforce low frequencies and project bass with far greater scale and authority than its thin form would suggest. The result isn’t simply more output. It’s a larger, fuller, and more immersive sense of bass throughout the room.

What room sizes is PL-2 best suited for?

PL-2 is specifically designed for large and medium rooms, open-plan environments, and systems that demand greater bass scale and output. Its increased amplifier power and deeper extension allow it to energize larger spaces while still maintaining the control and musicality expected from REL.

Can PL-2 be used for home theater systems?

Absolutely. PL-2 integrates naturally into both music and home theater environments. Its flexible placement options also open new possibilities for distributed bass including rear wall placement and immersive multi-subwoofer configurations.

Is the Planar PL-2 subwoofer compatible with wireless systems?

Yes. PL-2 includes integrated wireless technology for cleaner installation and more flexible placement options. The built-in Airship Direct wireless system simplifies setup while preserving the clean architectural appearance of the room.

Can Planar PL-2 be integrated with other REL subwoofer series?

Yes. PL-2 can be integrated with other REL models. This comes in handy when building a REL 3D set up where you can mix and match different models and pair them with different sets of speakers in your theater set ups. For stereo pairs, two of the same model is required to achieve the stereo effect. Multiple PL-2 subwoofers can further improve room coverage, bass consistency, and overall immersion.
