T/9x

Serie T/9x: Bigger and Better

The job of any range topper for REL is to deliver more of everything, particularly output and dynamics. The 9x is no different in this regard, as it delivers the goods in both music and theatre applications. 9x, however, delivers a level of intimacy, clarity and speed that means there are no longer trade-offs between the sonic balance of smaller models weighed against the power and scale of a model 9.

The all new 9x has even greater output than before, but the headline news is the way it sacrifices nothing in clarity and transparency to achieve this. At this price it opens the pathway for owners of high-performance European floor and stand mounted monitors and smaller panel speakers to enjoy truly full range sound.

The job of any range topper for REL is to deliver more of everything, particularly output and dynamics. The 9x is no different in this regard, as it delivers the goods in both music and theatre applications. 9x, however, delivers a level of intimacy, clarity and speed that means there are no longer trade-offs between the sonic balance of smaller models weighed against the power and scale of a model 9. The all new 9x has even greater output than before, but the headline news is the way it sacrifices nothing in clarity and transparency to achieve this. At this price it opens the pathway for owners of high-performance European floor and stand mounted monitors...
Read More

Design

Reimagined, Then Reengineered

Many don’t realize the intense linkage between performance and design here at REL. Performance is everything to us and so it drives physical design revisions. Our engineers, recognizing the need for greater acoustic volume to achieve the goals of greater fluidity and power, turn to the designer who works dimensions to fool the eye into seeing a smaller, more compact footprint even though cabinet volume increases. Using gently rounded corner radii that allows the eye to flow over and see less visual mass. The result is both modern and familiar with no unnecessary adornment.

Driver

Outsized Performance

To achieve higher output with better control requires a complete overhaul of the suspension components. Much like the suspension on a sports car, these items are responsible for the tuning and feel of our designs. By increasing the cabinet volume, efficiency is improved yielding higher output for no more amplifier power. Less back pressure inside the cabinet means we can tune for a stiffer, better controlled driver suspension. We retained the best aspects of our previous design, such as the aluminum center cap responsible for stiffening the lightweight 10” (250mm) cone while adding almost no mass. The updated combination produces considerably better attack and dynamics with greater transparency.

Amplifier

Tried and True Amplifiers

We have retained our signature Class A/B amplifiers used in every generation of Serie T since 2006. Reliability is the key to happy ownership and with some 200,000 and counting of this range leading long happy lives, Serie T/x owners can feel certain of REL’s standard setting reliability. The powerful 300 watt mosfet amplifier used in the T/9x remains an icon with huge reserves of current, massive power supplies but small upgrades are found everywhere. New driver mosfets that open up performance and transparency and new methods for securing the toroidal transformers mean better performance and superior strength.

REL’s legendary High Level Input connection and fast filters are a significant part of the REL story. Connecting via the speaker outputs of your amplifier without drawing any power from it may seem like magic, but the real magic lies in the way the sound takes on a natural character. Unique tuning and special limiters mean the T/x range sounds fresher, faster and more dynamic than before.

Standby Mode switch is only included on 220V units.

Wireless

Wireless that Doesn’t Compress the Sound

At REL, we’ve developed a sterling reputation for building the finest sounding, fastest wireless systems available in the industry. We never rely upon digital compression as it results in dull, lifeless sound. Instead, we have perfected an (optional) Arrow™ wireless system so fast and dynamic we’re comfortable encouraging the use of wireless on one channel of a pair of RELs while the other channel may be connected conventionally with cable.

Explore Arrow Wireless

Specifications

Technical Specifications

Type

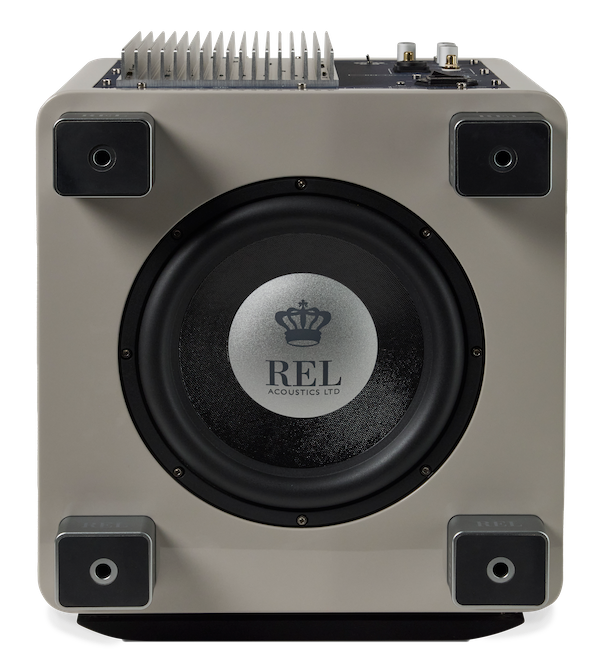

Front-firing active driver, down-firing passive

Active Driver Size & Material

10 in. (250mm) long-throw, FibreAlloy™ cone, inverted alloy centre cap, steel chassis

Passive Radiator Size & Material

10 in. (250mm) long-throw, FibreAlloy™ cone, inverted alloy centre cap, steel chassis

Low Frequency Extension

-6dB at 27 Hz Low Frequency

Input Connectors

High Level Neutrik Speakon, Low Level (1) RCA, (1) LFE RCA

Output Connectors

N/A

Power Output

300 watts (RMS)

Amplifier Type

Class A/B

Wireless Capability

REL Arrow (sold separately)

Dual Parametric Filter

N/A

Finish

Piano Black Lacquer, Gloss White Lacquer 5 coats

Protection System

Fully Electronic Set Safe

Yes

D.C. Fault

Yes

Output Short

Yes

Mains Input Voltage

220-240 volts, 110-120 volts for certain markets

Fuses

3.15 Amp semi delay 230 volts operation, 6.3 Amp semi delay 115 volts operation

Supplied Accessories

Mains Lead

Yes

Neutrik Speakon

Yes (10 Meters Nominal)

Interconnect

User Manual

Yes

In the interest of product development, REL Acoustics Limited reserve the right to vary these specifications without notice.

Dimensions

W x H x D

14.5 x 13.4 x 15.5 in.,
(370 x 340 x 393 mm)

Net Weight

45.5 lbs. (20.6 kg)
